General Drill Holder 3XD YGWC3-23S25F069-05 YG-1

SKU: 37000303

PRICE:

146,03 € + VAT

182,54 € (price w VAT)

Price on date 03.10.2026.: 146,03

Available on inquiry

ATTENTION:
This product is available on request only

Send us a message

Cart

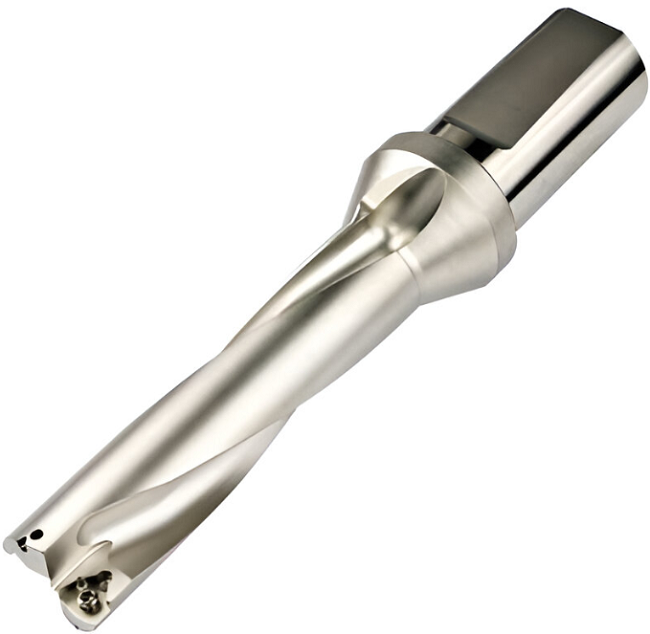

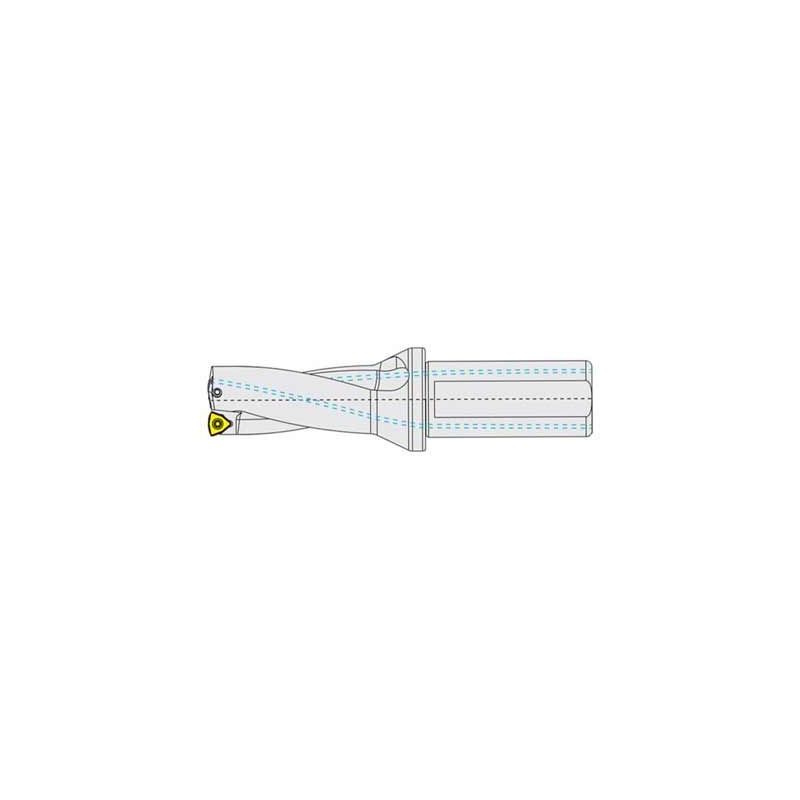

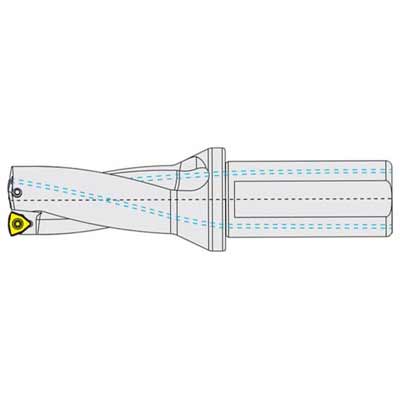

Svrdlo YGWC3-23S25F069-05 ⌀23 mm 3xD, YG-1

YG-1 svrdlo YGWC3-23S25F069-05 promjera 23 mm, izvedbe 3xD, s prihvatom promjera 25 mm. Namijenjeno je za izmjenjive pločice serije WCMX 040208.

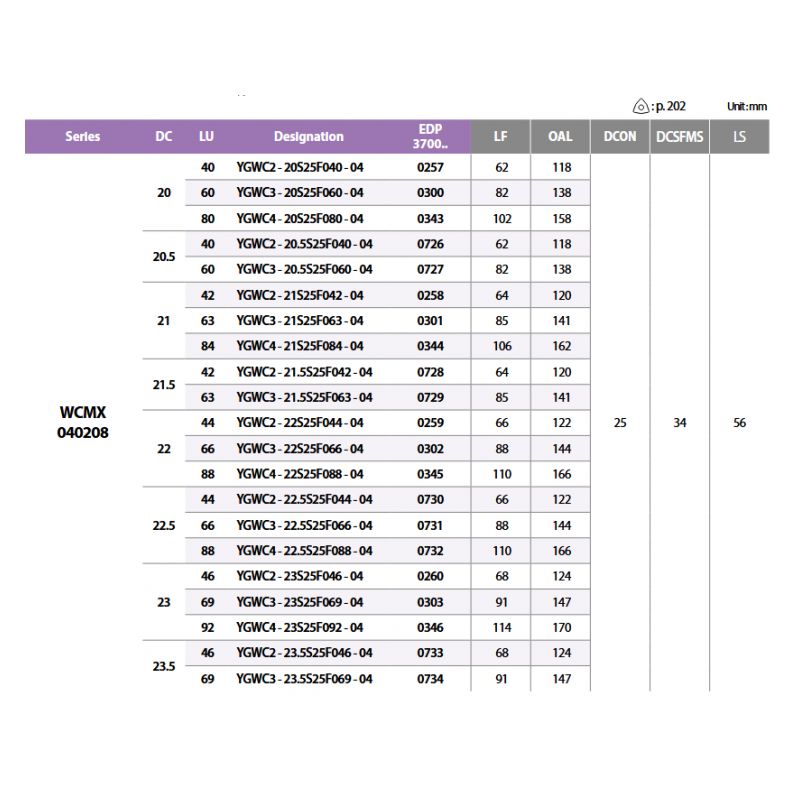

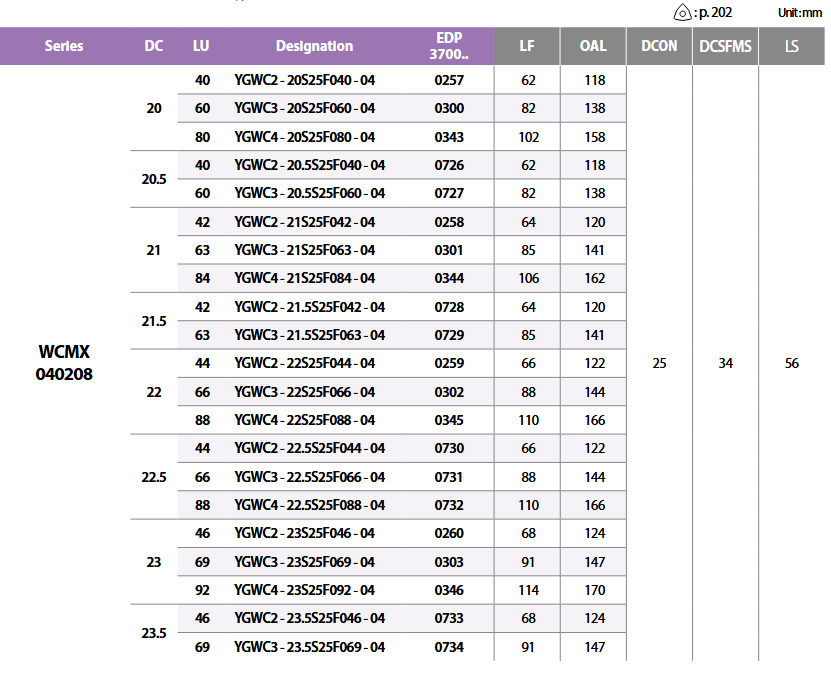

Tehničke specifikacije

Oznaka: YGWC3-23S25F069-05
Serija pločice: WCMX 040208
Promjer svrdla (DC): 23 mm
Dubina bušenja: 3xD
LU: 69 mm
Ukupna duljina (OAL): 147 mm
LF: 91 mm
Promjer drške (DCON): 25 mm
DCSFMS: 34 mm
LS: 56 mm

Identifikacija

Proizvođač: YG-1
Model: YGWC3-23S25F069-05
Vrsta: Svrdlo s izmjenjivim pločicama
Promjer: ⌀23 mm
Izvedba: 3xD
Pločica: WCMX 040208

Availability

OFFICE Samobor	Unavailabe
OFFICE Otok Samoborski	Unavailabe
OFFICE Sveta Nedelja Obrtnička	Unavailabe
OFFICE Sveta Nedelja - Franje Tuđmana	Unavailabe
OFFICE Prelog	Unavailabe

NOTICE
Metal-Kovis d.o.o. does not guarantee that the prices, availability and descriptions of the product are accurate, as well as that the photos match their true appearance.
