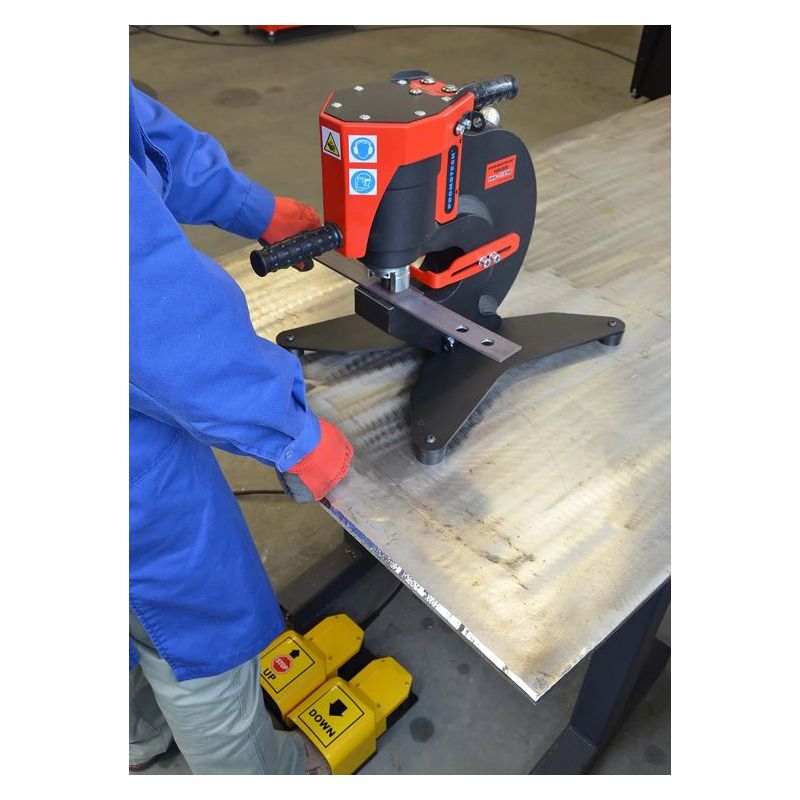

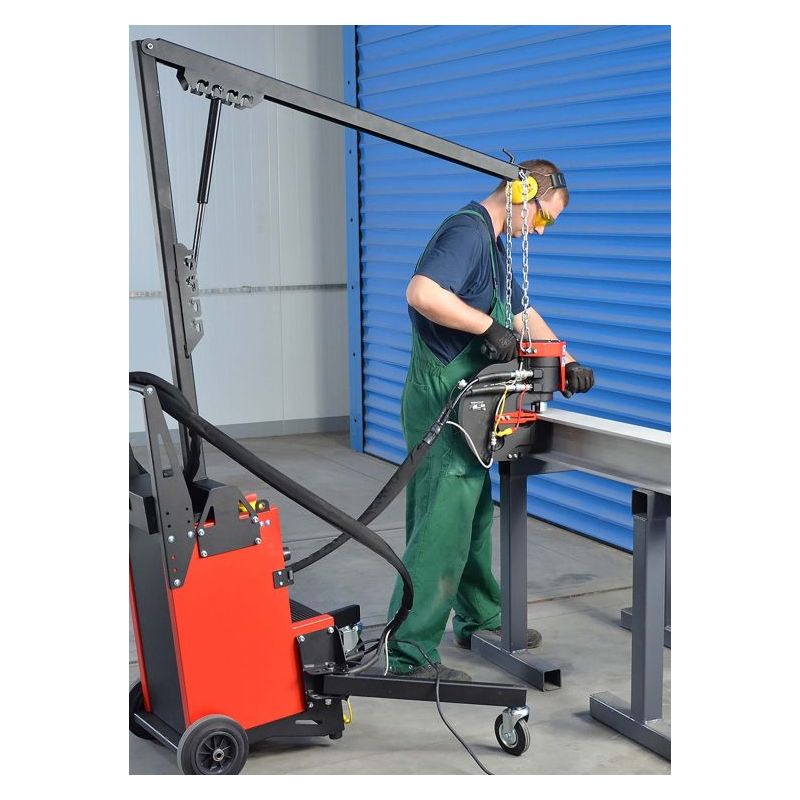

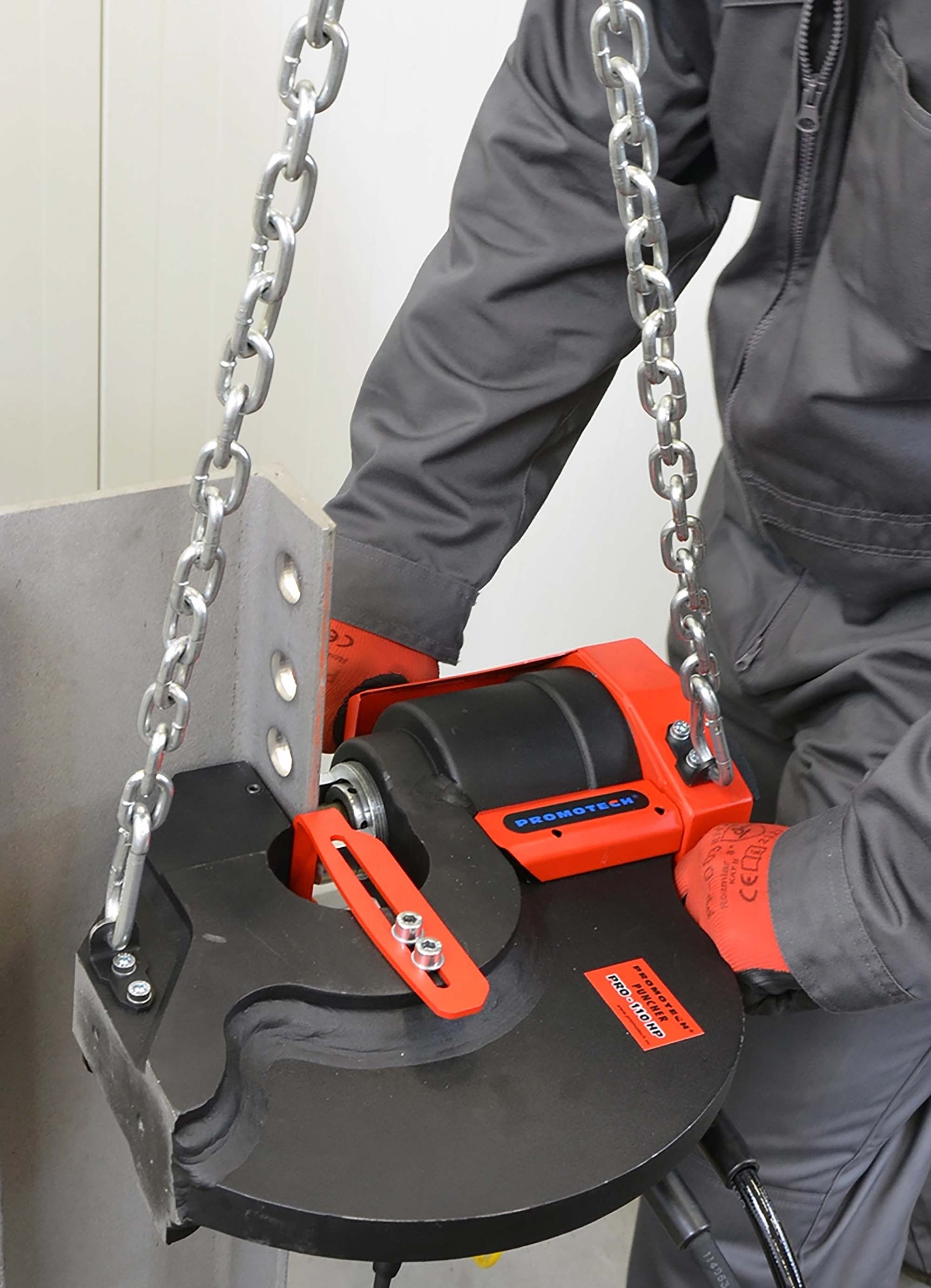

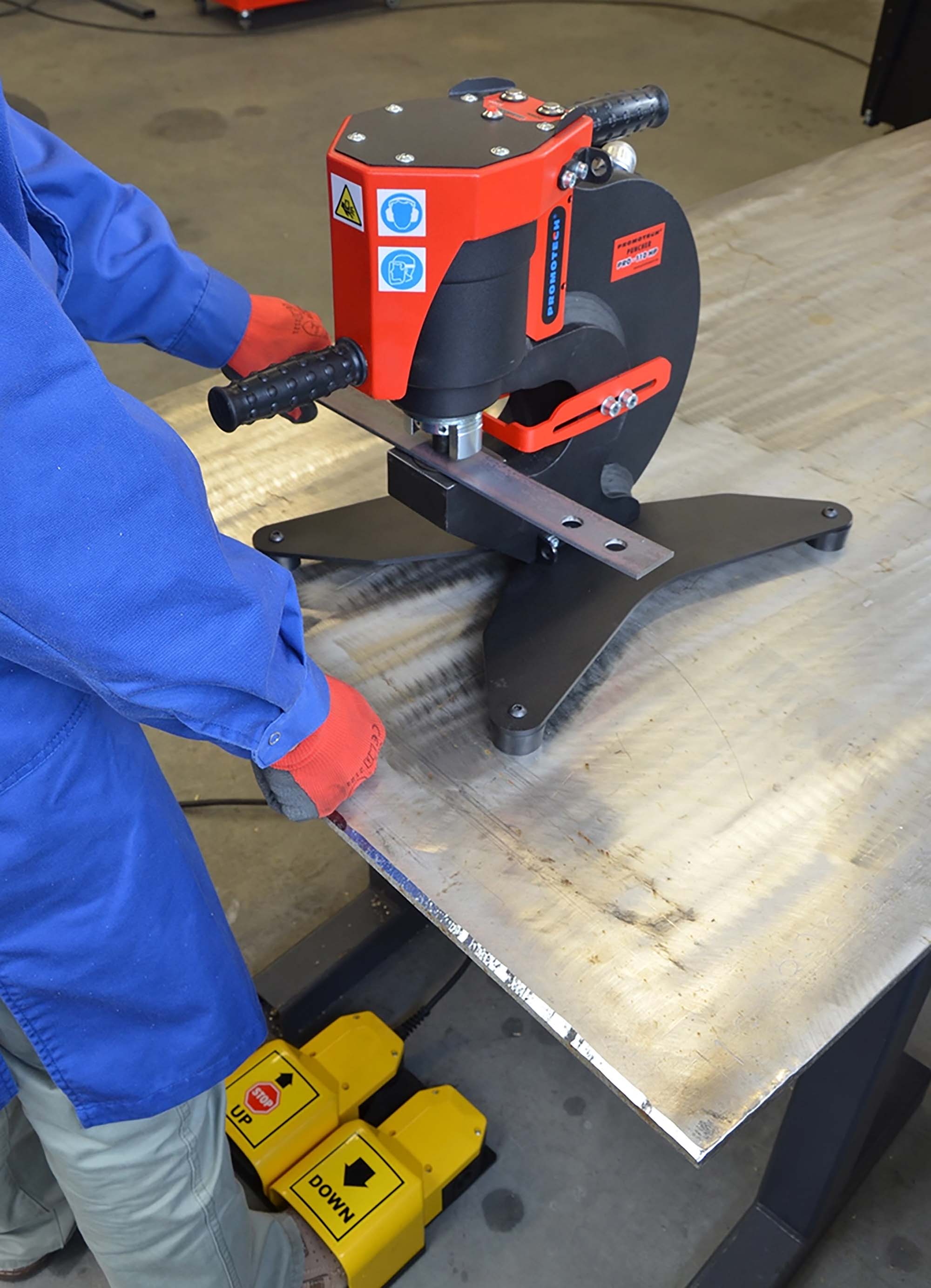

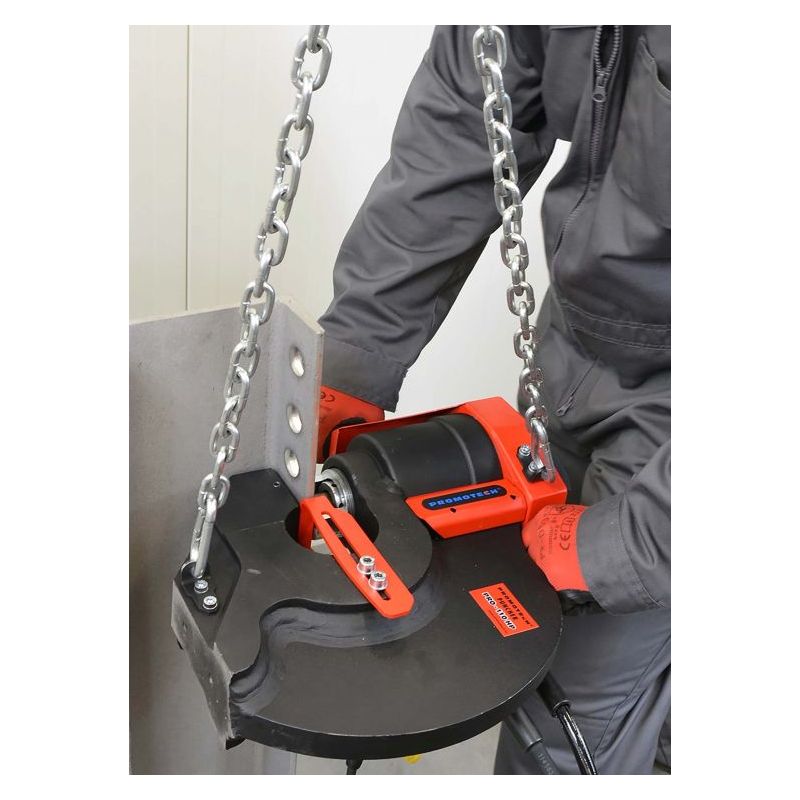

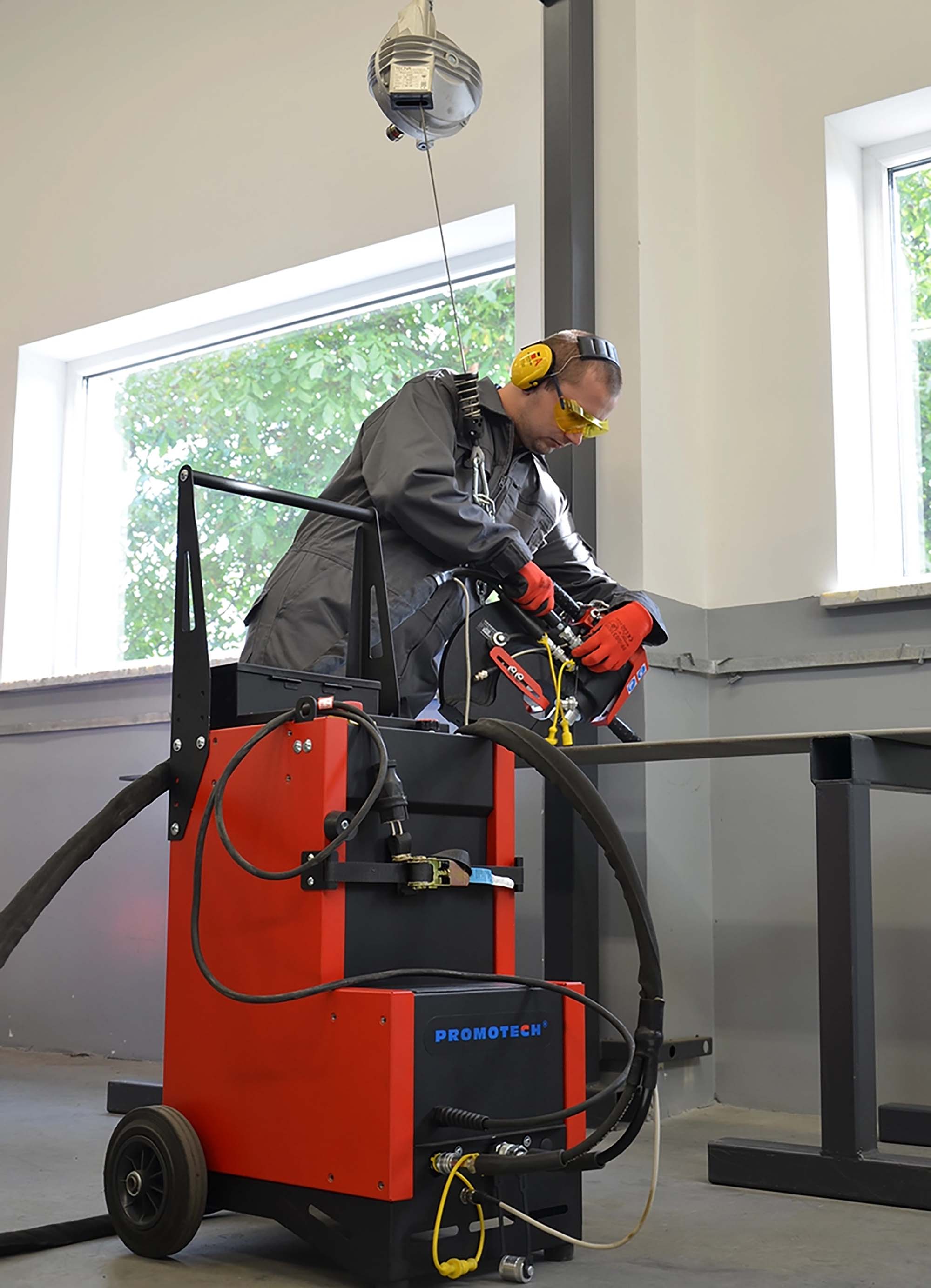

Hidraulični prijenosni probijač PRO-60 HP – Promotech

Kapacitet

Maksimalna dubina probijanja: 60 mm
Maksimalni promjer rupe: 27 mm
Maksimalno probijanje ovalne rupe: 25 × 18 mm
Vrijeme probijanja: 5 s
Maksimalna debljina materijala: 13 mm
Sila probijanja: 35 t
Radni tlak: 700 bar
Masa: 20 kg

Maksimalne debljine materijala za okrugle rupe – metričke veličine

Promjer rupe Ø	S235JR meki čelik Rm ≤ 490 MPa	355J2 G3 tvrdi čelik Rm = 490–630 MPa	Nehrđajući čelik Rm = 630–750 MPa
7 mm	5,6 mm	3,5 mm	2,8 mm
8 mm	6,4 mm	4,0 mm	3,2 mm
9 mm	7,2 mm	4,5 mm	3,6 mm
10 mm	8,0 mm	5,0 mm	4,0 mm
11 mm	8,8 mm	5,5 mm	4,4 mm
12 mm	9,6 mm	6,0 mm	4,8 mm
13 mm	10,4 mm	6,5 mm	5,2 mm
14 mm	11,2 mm	7,0 mm	5,6 mm
15 mm	12,0 mm	7,5 mm	6,0 mm
16 mm	12,8 mm	8,0 mm	6,0 mm
17 mm	13,0 mm	8,5 mm	6,0 mm
18 mm	13,0 mm	9,0 mm	6,0 mm
19 mm	13,0 mm	9,5 mm	6,0 mm
20 mm	13,0 mm	10,0 mm	5,0 mm
21 mm	13,0 mm	10,5 mm	5,0 mm
22 mm	13,0 mm	10,3 mm	5,0 mm
23 mm	12,4 mm	9,9 mm	4,0 mm
24 mm	11,9 mm	9,5 mm	4,0 mm
25 mm	11,4 mm	9,1 mm	4,0 mm
26 mm	11,0 mm	8,7 mm	4,0 mm
27 mm	10,6 mm	8,4 mm	4,0 mm

Maksimalne debljine materijala za ovalne rupe – metričke veličine

Dimenzija rupe	S235JR meki čelik Rm ≤ 490 MPa	355J2 G3 tvrdi čelik Rm = 490–630 MPa	Nehrđajući čelik Rm = 630–750 MPa
16 × 8 mm	6,4 mm	4,0 mm	3,2 mm
18 × 9 mm	7,2 mm	4,5 mm	3,6 mm
18 × 11 mm	8,8 mm	5,5 mm	4,4 mm
20 × 10 mm	8,0 mm	5,0 mm	4,0 mm
20 × 12 mm	9,6 mm	6,0 mm	4,8 mm
20 × 14 mm	11,2 mm	7,0 mm	6,0 mm
22 × 11 mm	8,8 mm	5,5 mm	4,4 mm
22 × 14 mm	11,2 mm	7,0 mm	6,0 mm
24 × 12 mm	9,6 mm	6,0 mm	4,8 mm
25 × 9 mm	7,2 mm	4,5 mm	3,6 mm
25 × 12 mm	9,6 mm	6,0 mm	4,8 mm
25 × 13 mm	10,4 mm	6,5 mm	5,2 mm
25 × 14 mm	11,2 mm	7,0 mm	6,0 mm
25 × 18 mm	13,0 mm	9,0 mm	6,0 mm

Maksimalne debljine materijala za okrugle rupe – imperijalne veličine preračunate u mm

Promjer rupe Ø	S235JR meki čelik Rm ≤ 490 MPa	355J2 G3 tvrdi čelik Rm = 490–630 MPa	Nehrđajući čelik Rm = 630–750 MPa
7,94 mm	6,4 mm	4,0 mm	3,2 mm
9,53 mm	8,0 mm	5,0 mm	4,0 mm
11,11 mm	8,8 mm	5,5 mm	4,4 mm
12,70 mm	10,4 mm	6,5 mm	5,2 mm
14,29 mm	11,2 mm	7,0 mm	6,0 mm
15,88 mm	12,8 mm	8,0 mm	6,0 mm
17,46 mm	13,0 mm	9,0 mm	6,0 mm
19,05 mm	13,0 mm	9,5 mm	6,0 mm
20,64 mm	13,0 mm	10,5 mm	5,0 mm
22,23 mm	13,0 mm	10,3 mm	5,0 mm
23,81 mm	11,9 mm	9,5 mm	4,0 mm
25,40 mm	11,0 mm	8,7 mm	4,0 mm
26,99 mm	10,6 mm	8,4 mm	4,0 mm
