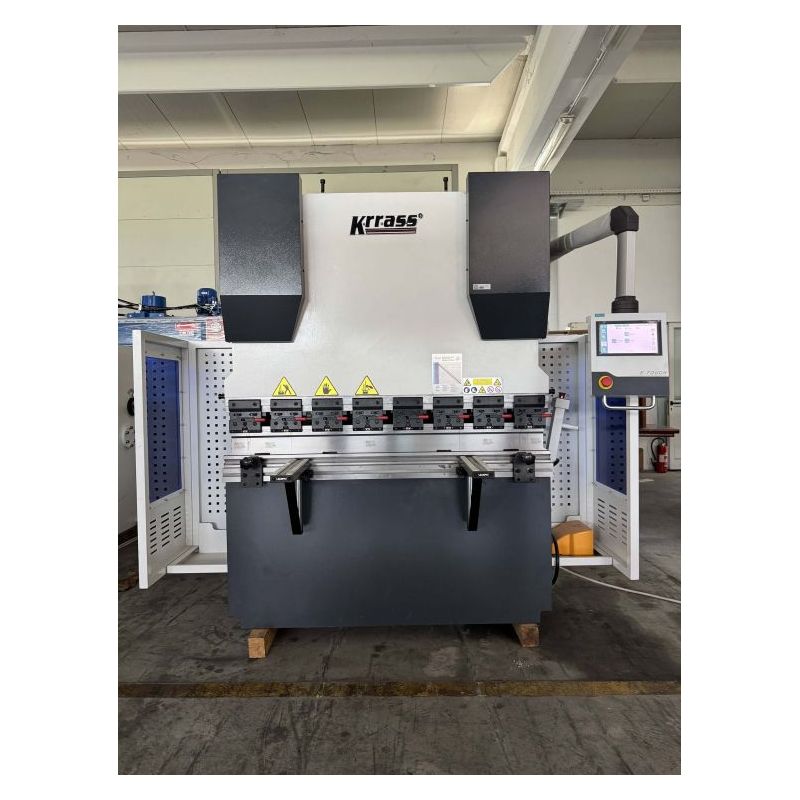

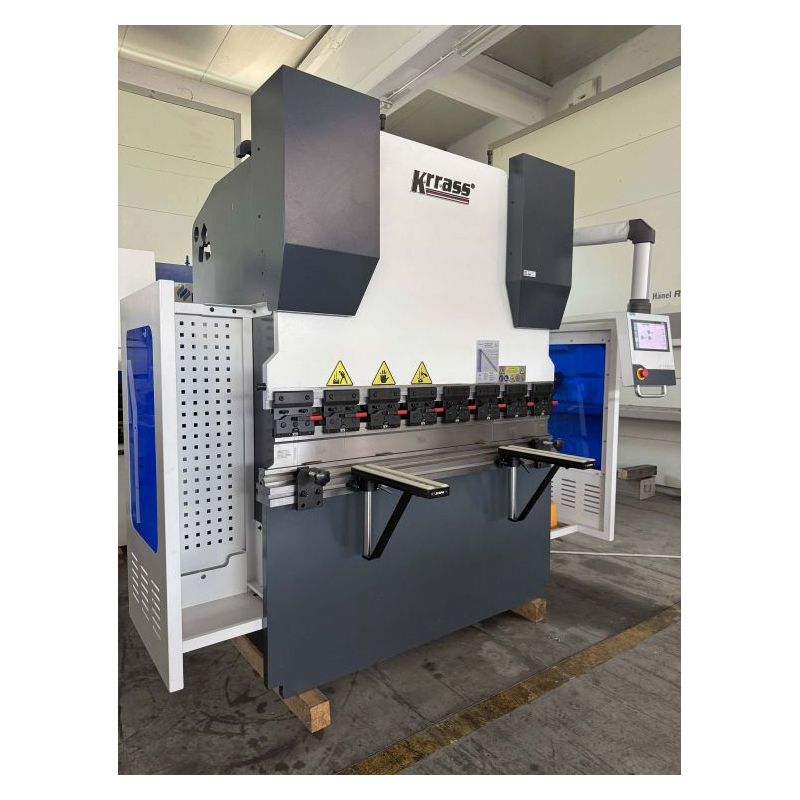

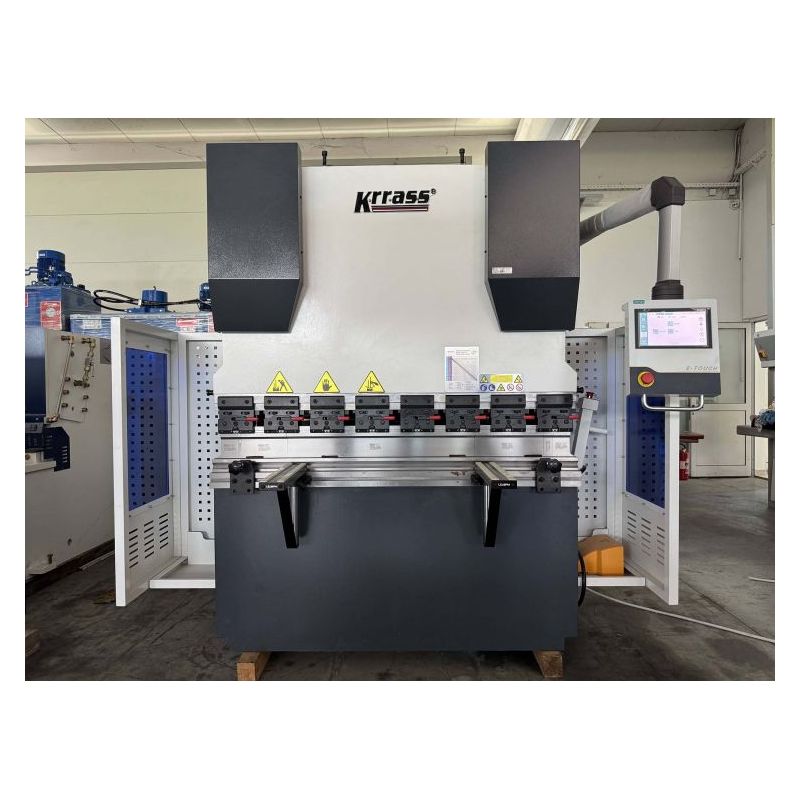

Press Breke WC67K-40t/1400 mm, E300, NC

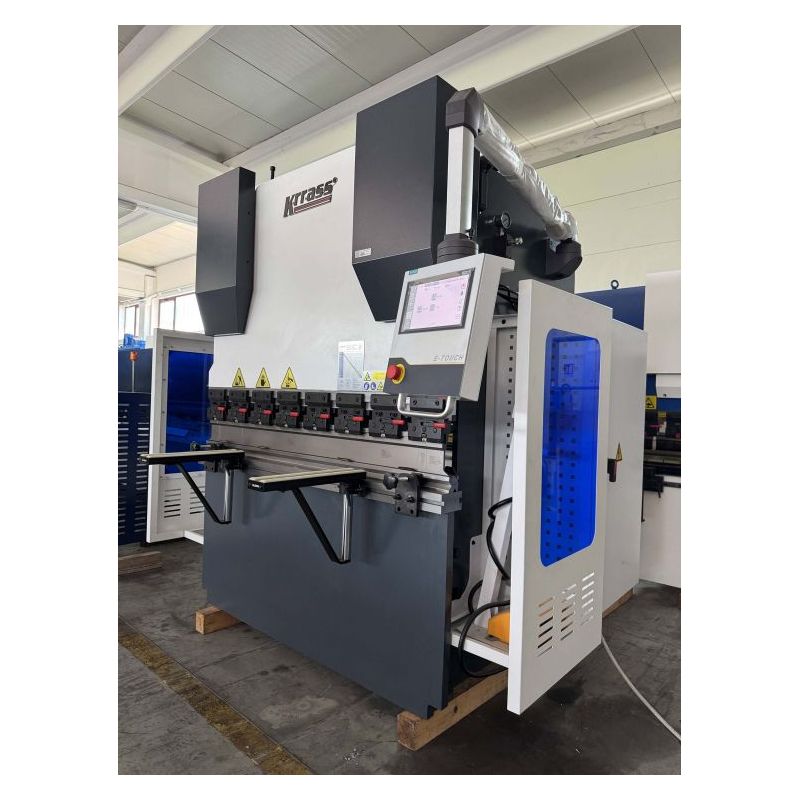

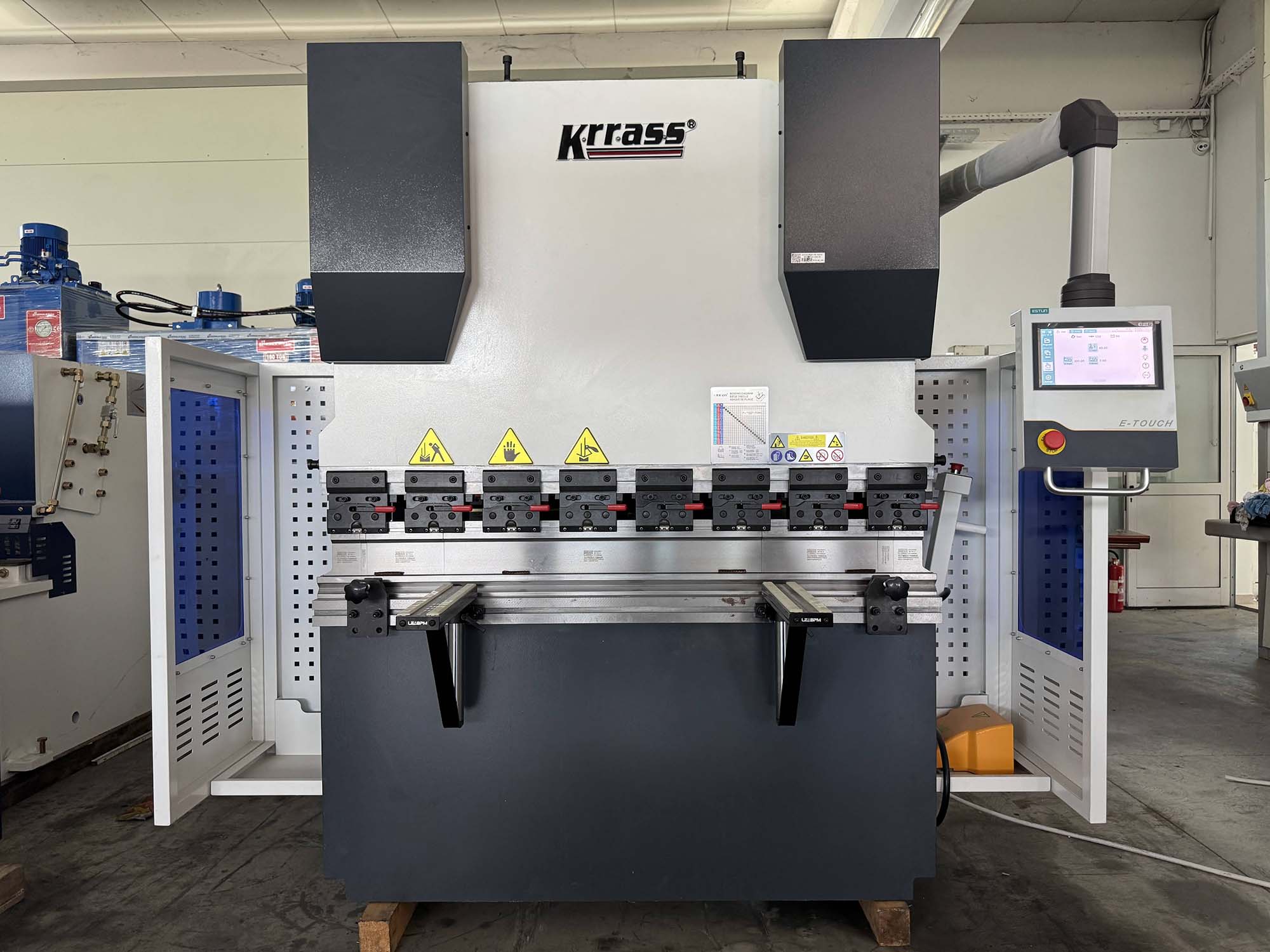

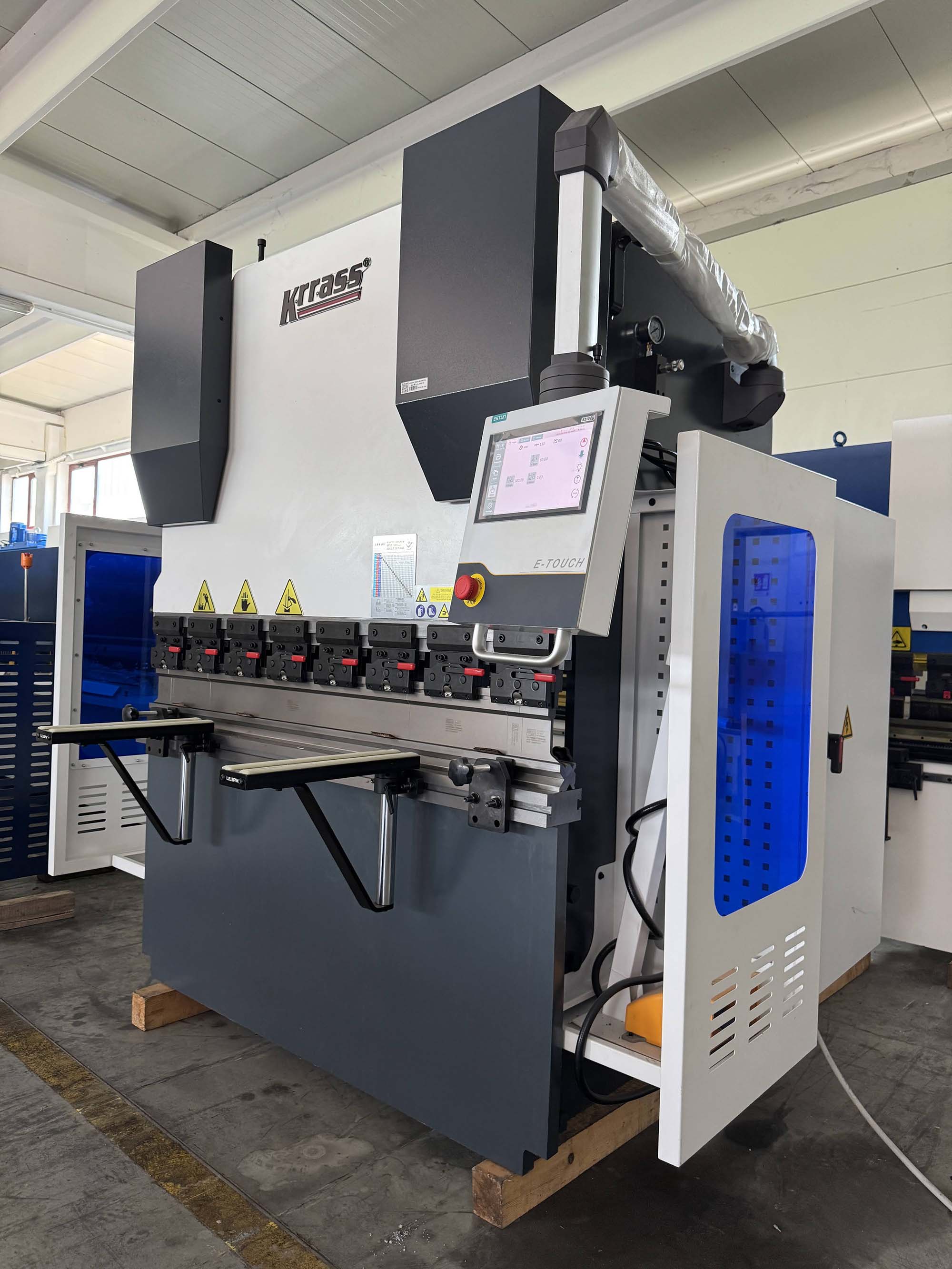

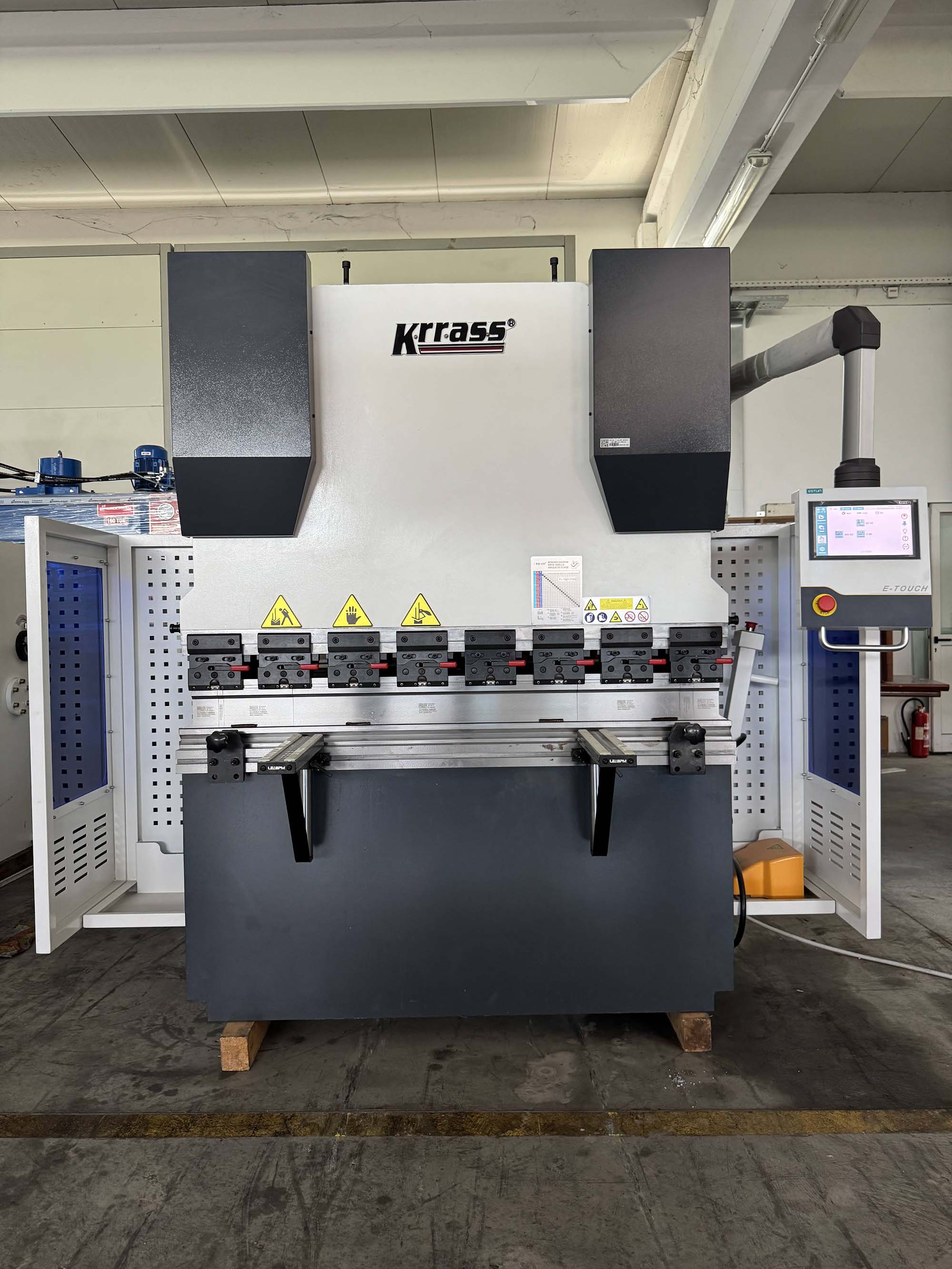

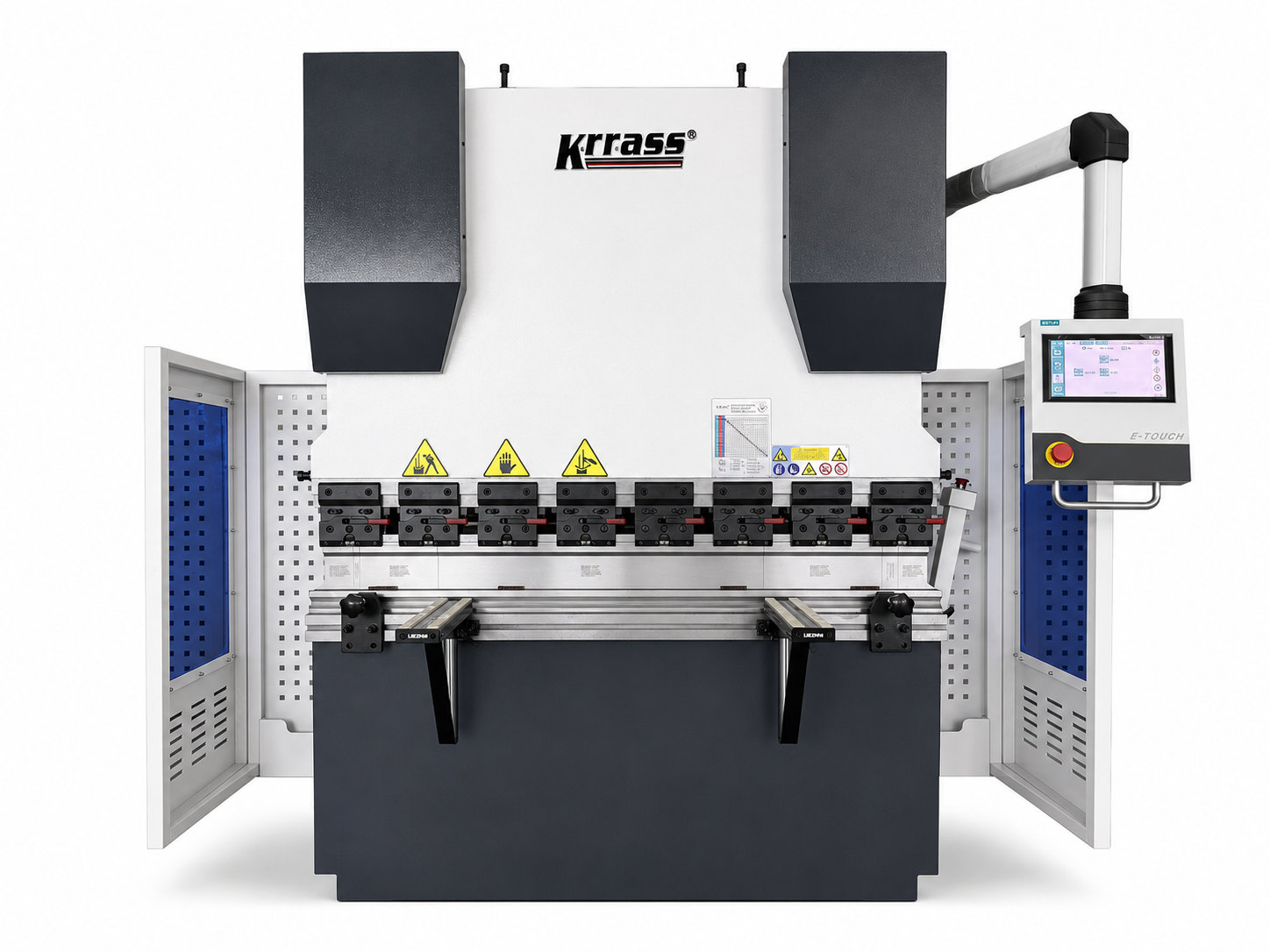

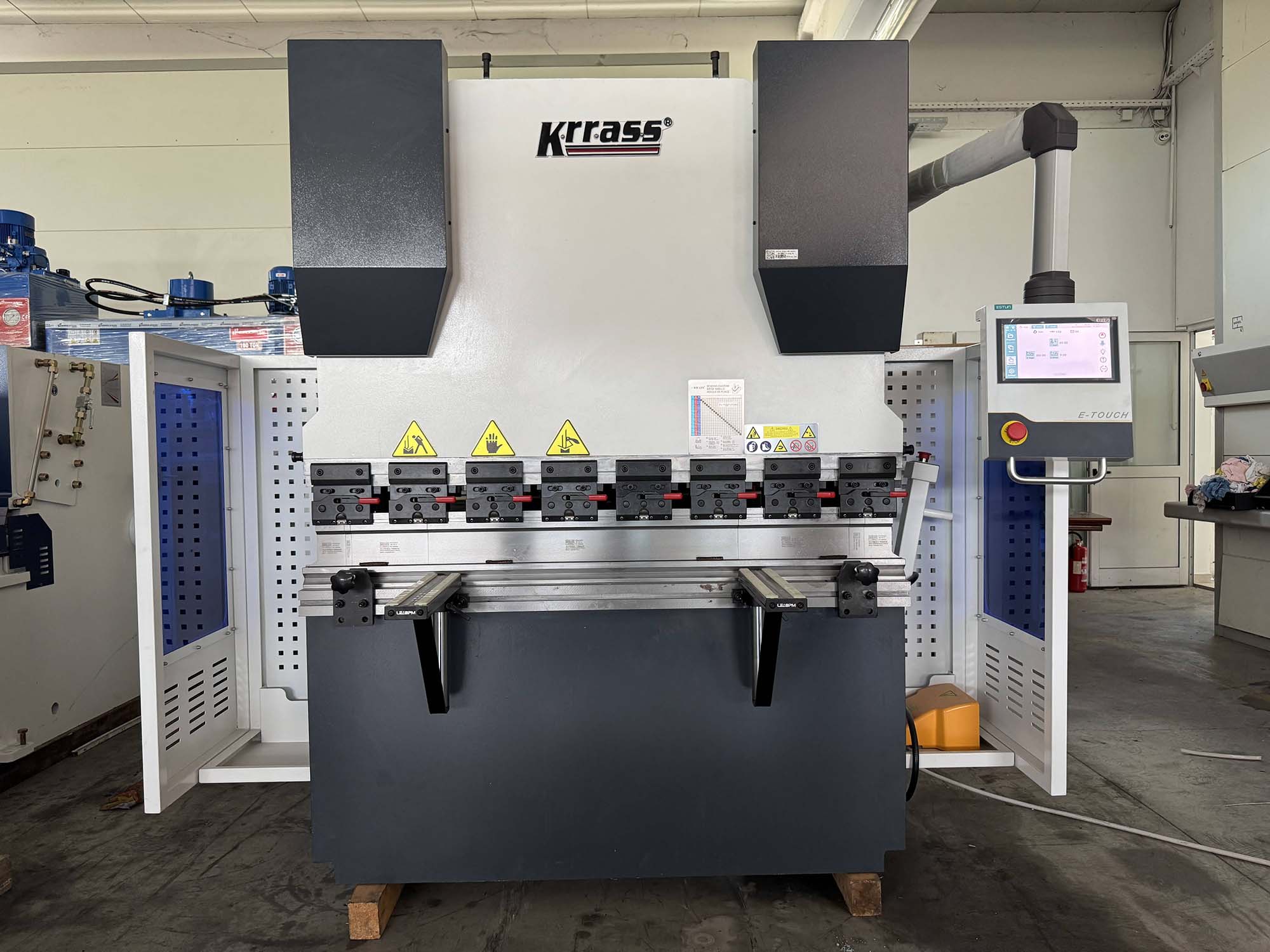

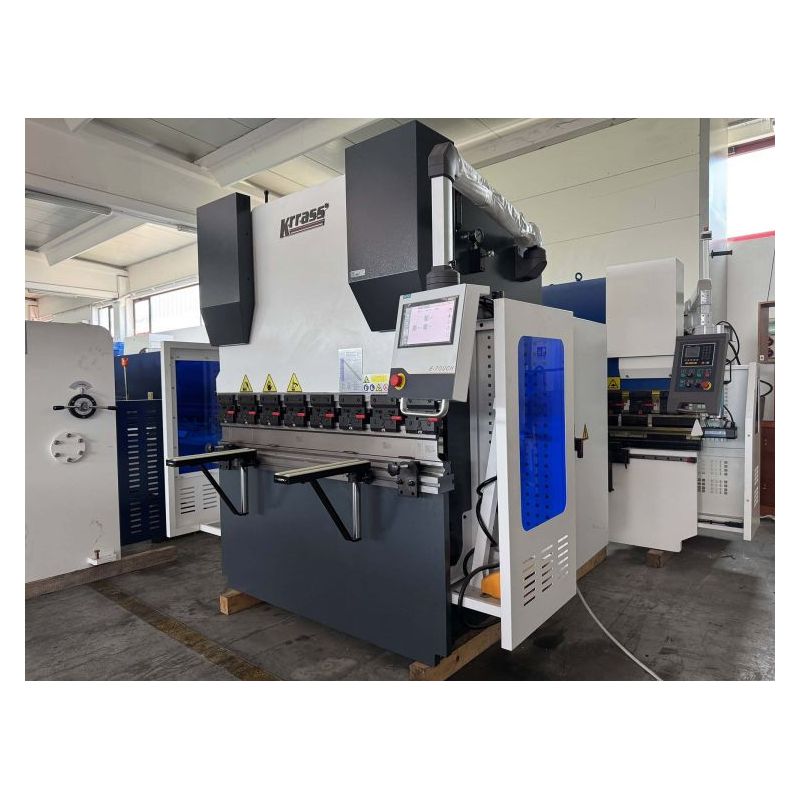

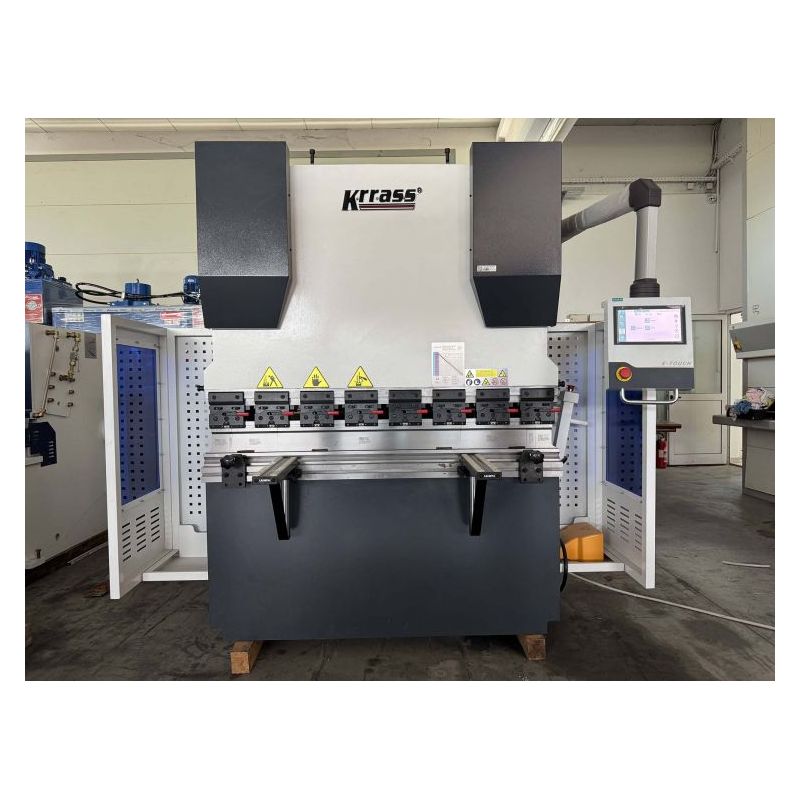

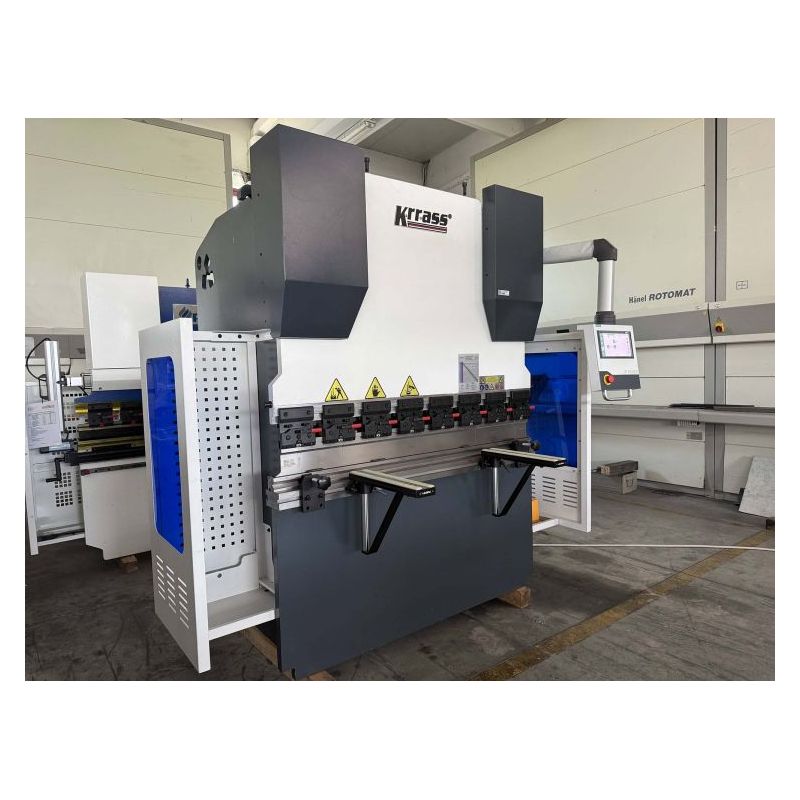

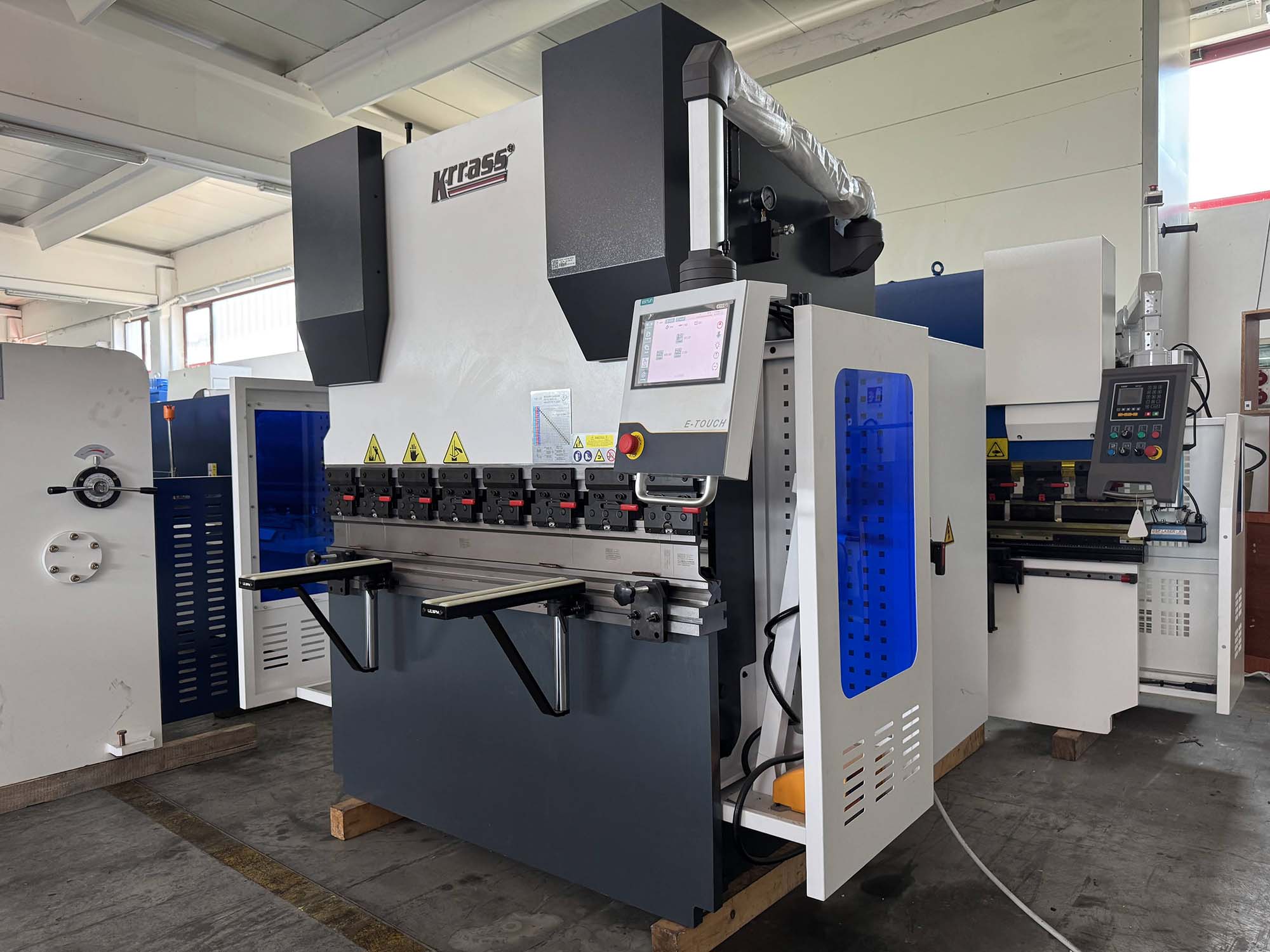

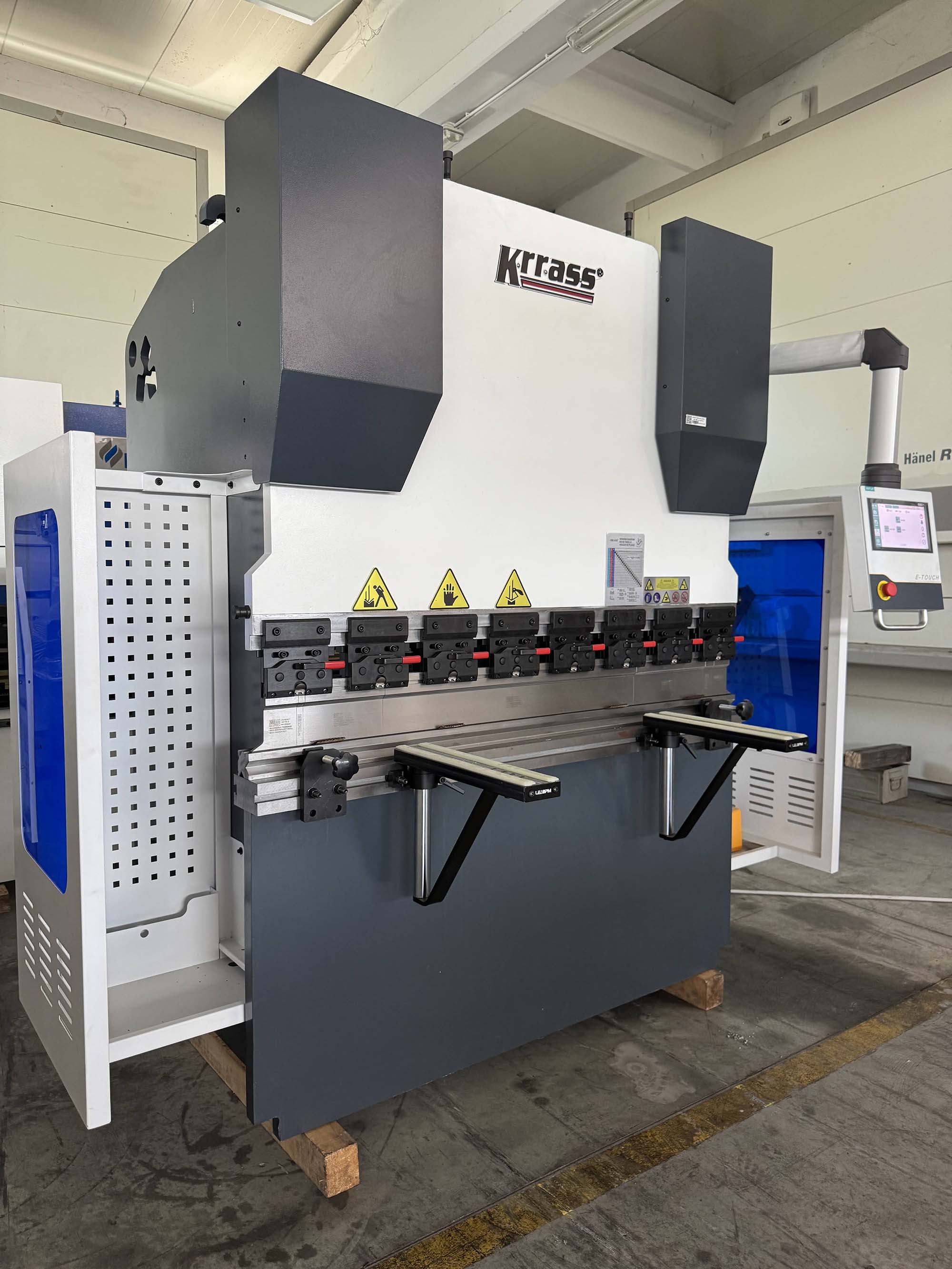

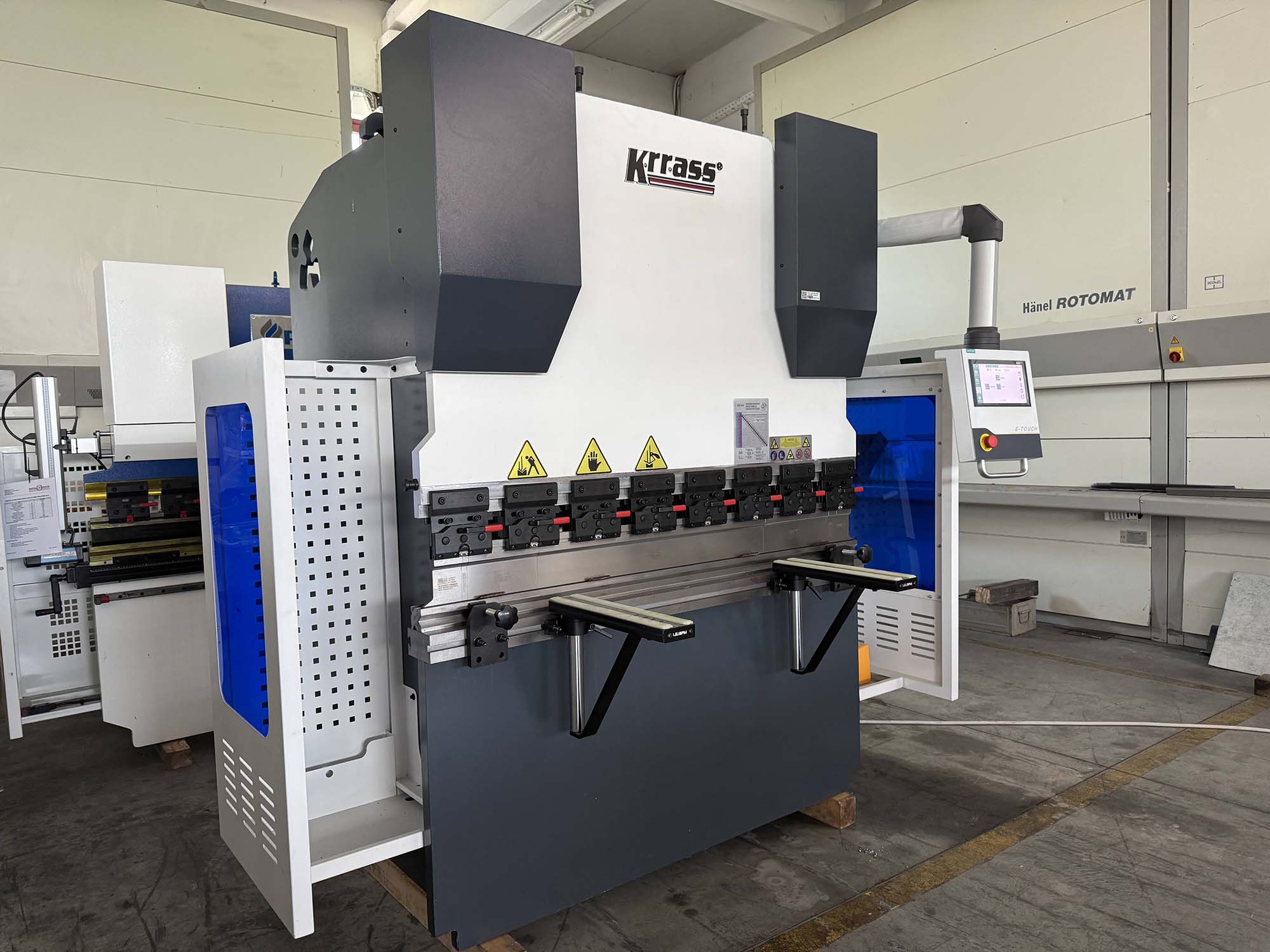

Hidraulična apkant preša WC67K 40t/1600 mm, E300, NC, Krrass

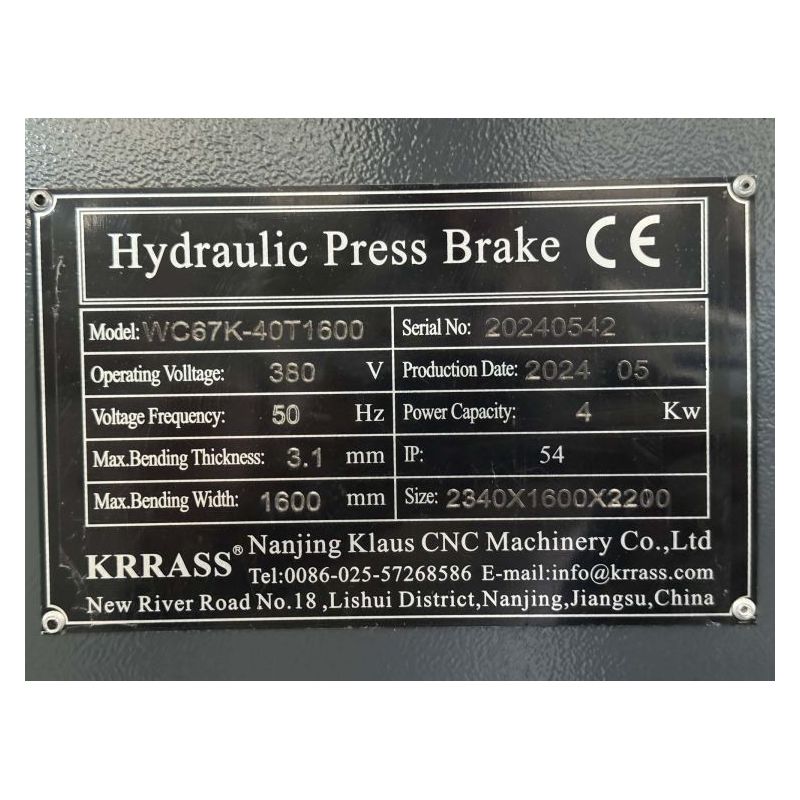

Osnovne tehničke karakteristike stroja
- sila savijanja: 400 kN
- dužina savijanja: 1600 mm
- razmak među stupovima: 950 mm
- dubina grla: 230 mm
- hod: 100 mm
- maksimalno otvaranje stroja: 320 mm
- brzina prilaza: 80 mm/s
- brzina povrata: 70 mm/s
- brzina graničnika: 0,05 mm/m
- hod X-graničnika: 300 mm
- snaga motora: 3 kW
- dimenzije stroja (DxŠxV): 1800x1200x1820 mm
- masa stroja: 2500 kg
Oprema stroja

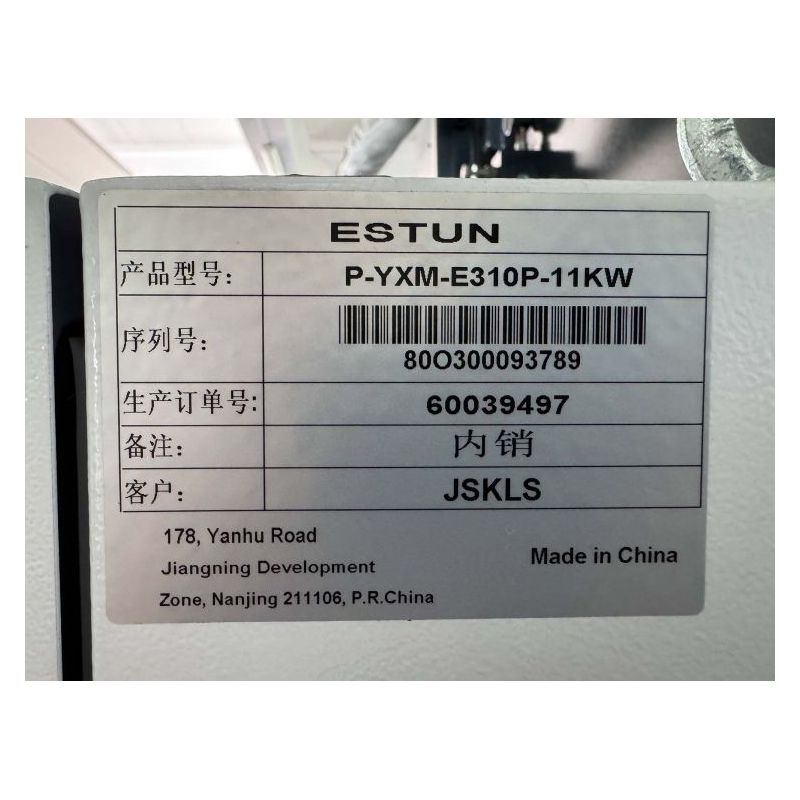

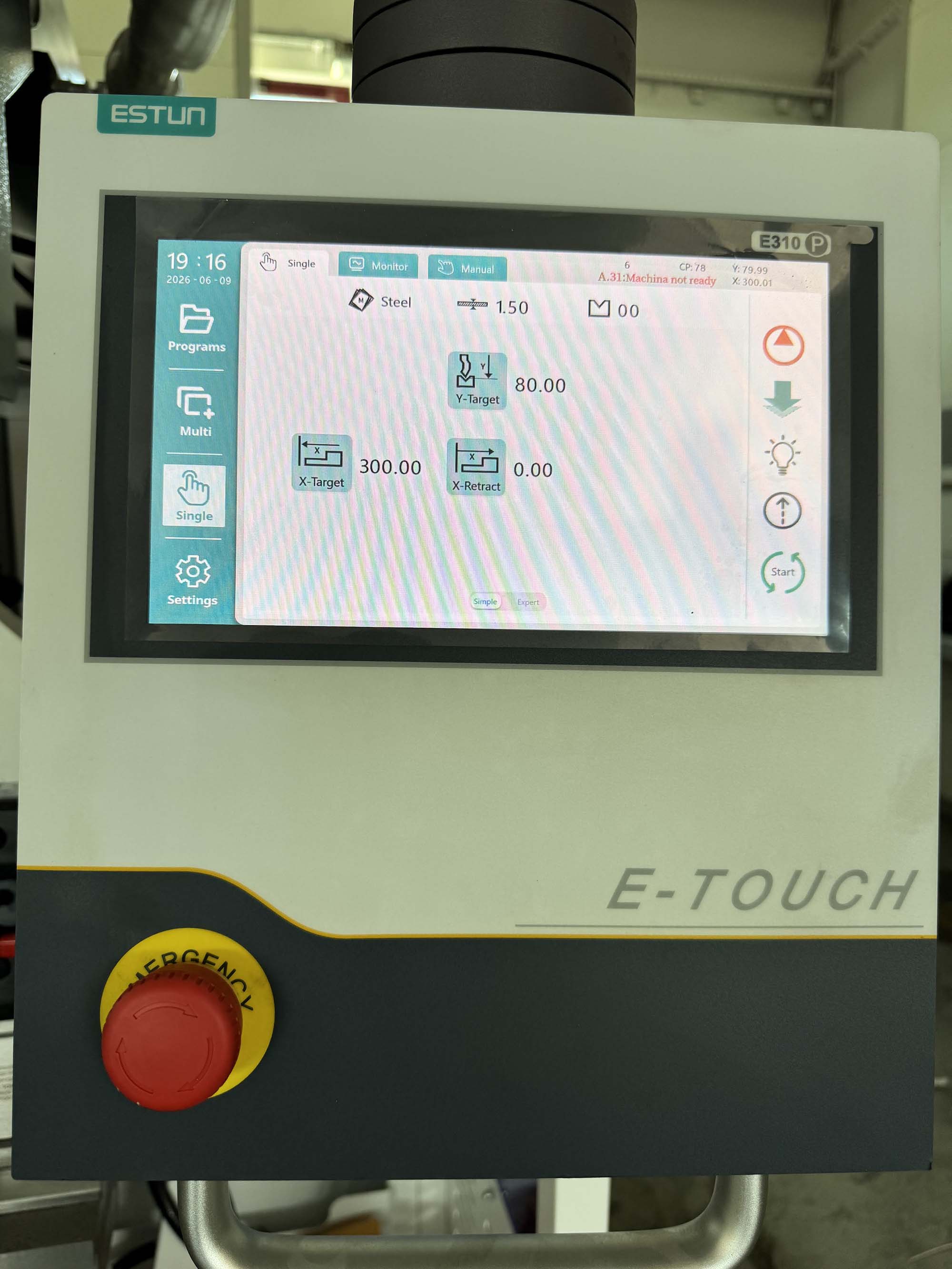

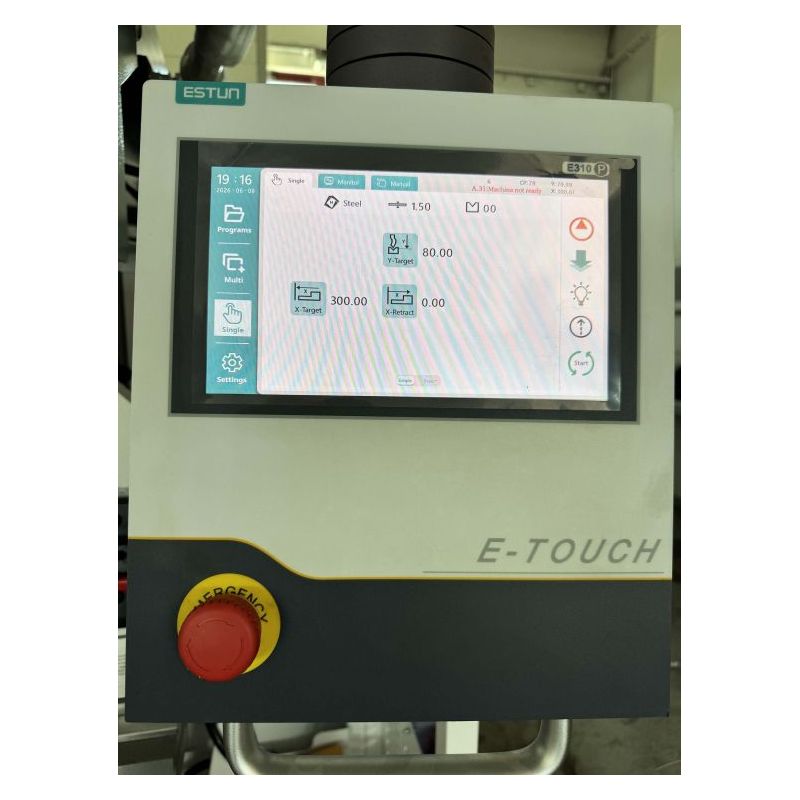

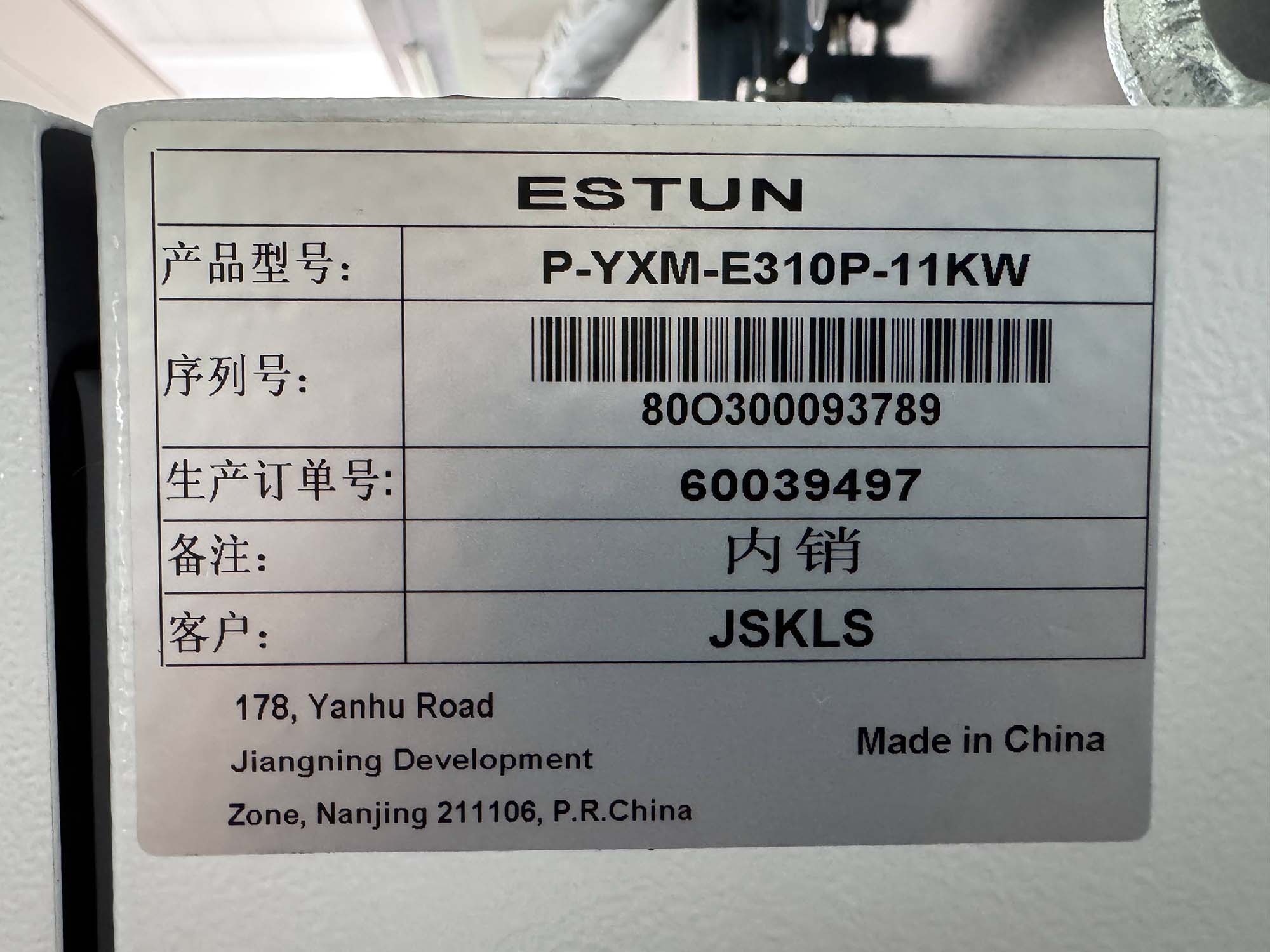

- upravljačka jedinica Estun E300

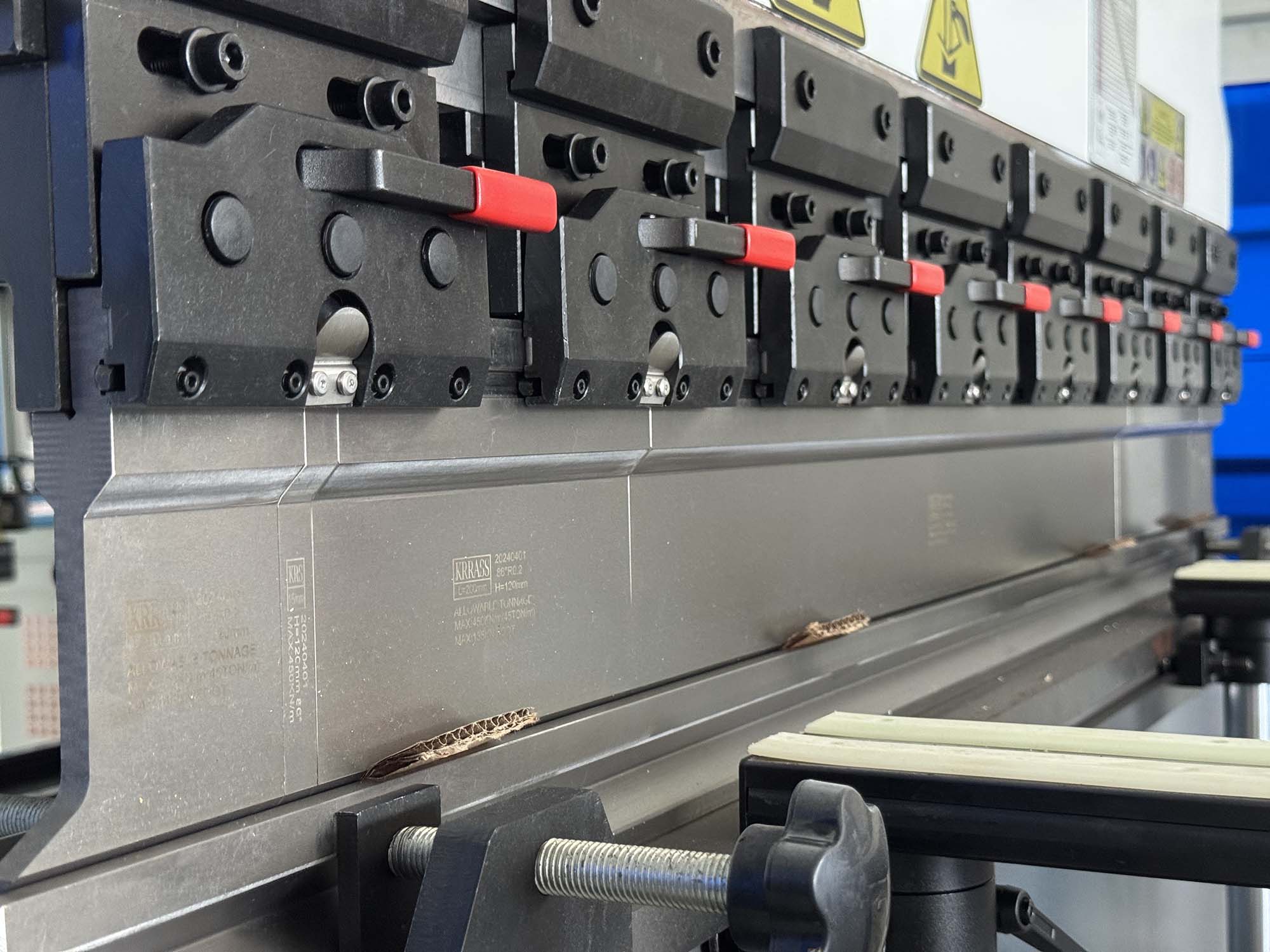

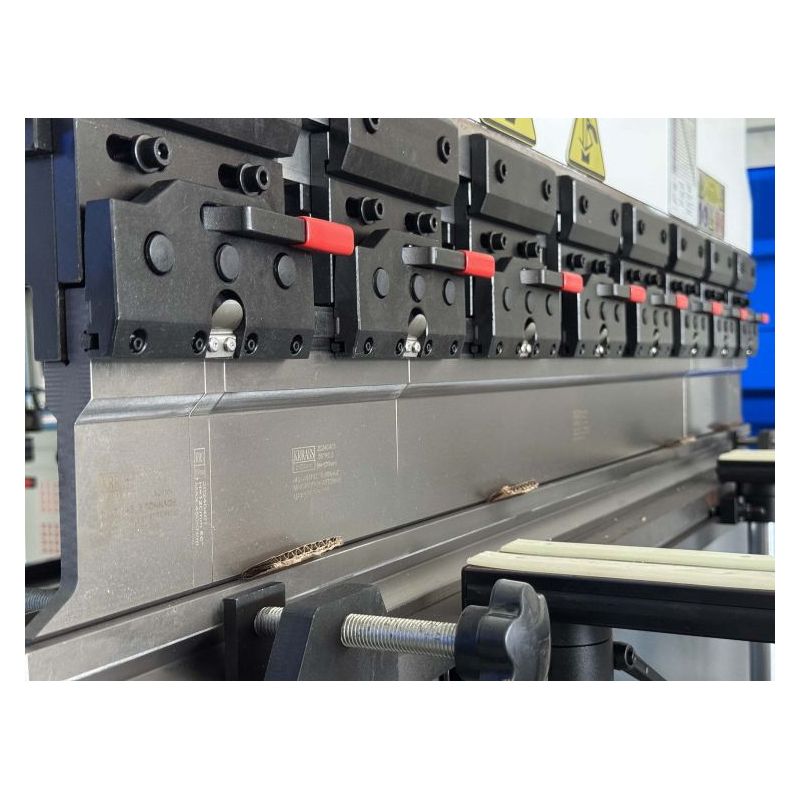

- gornji i donji alat za savijanje
- prednji pridrživači lima 2 kom
- stražnji pridrživači lima na graničniku 2 kom
- servo motori na X i Y osima stroja

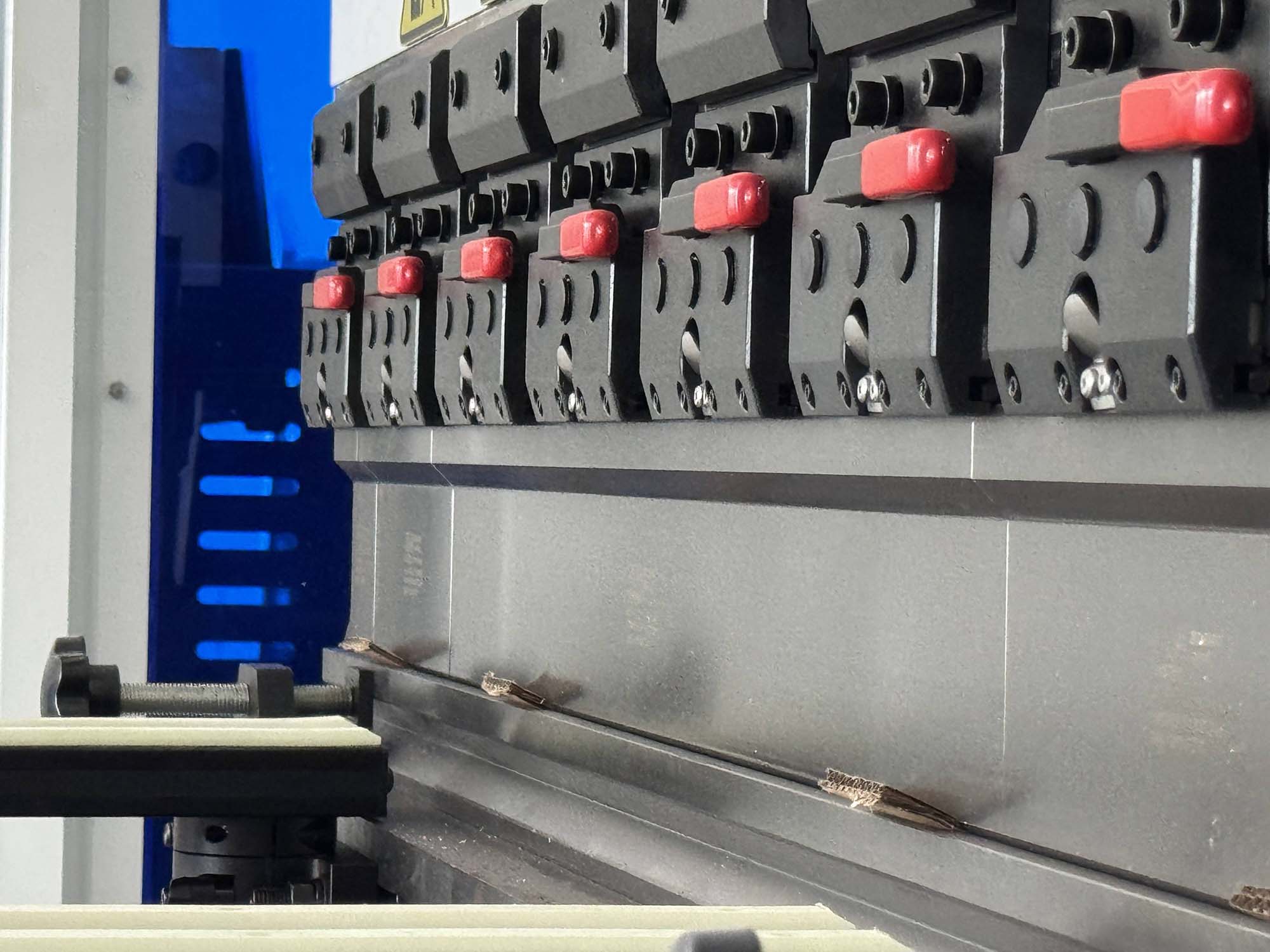

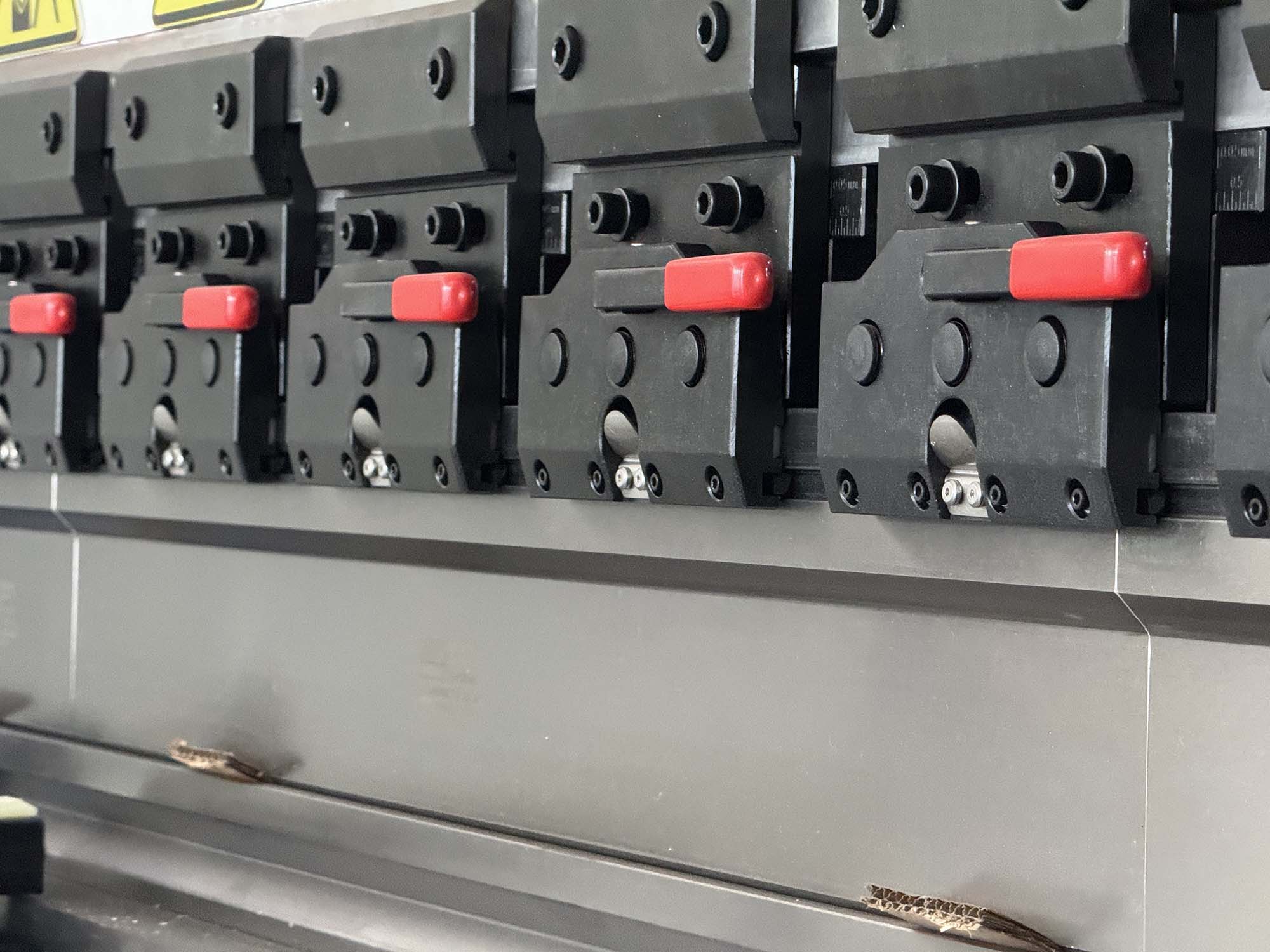

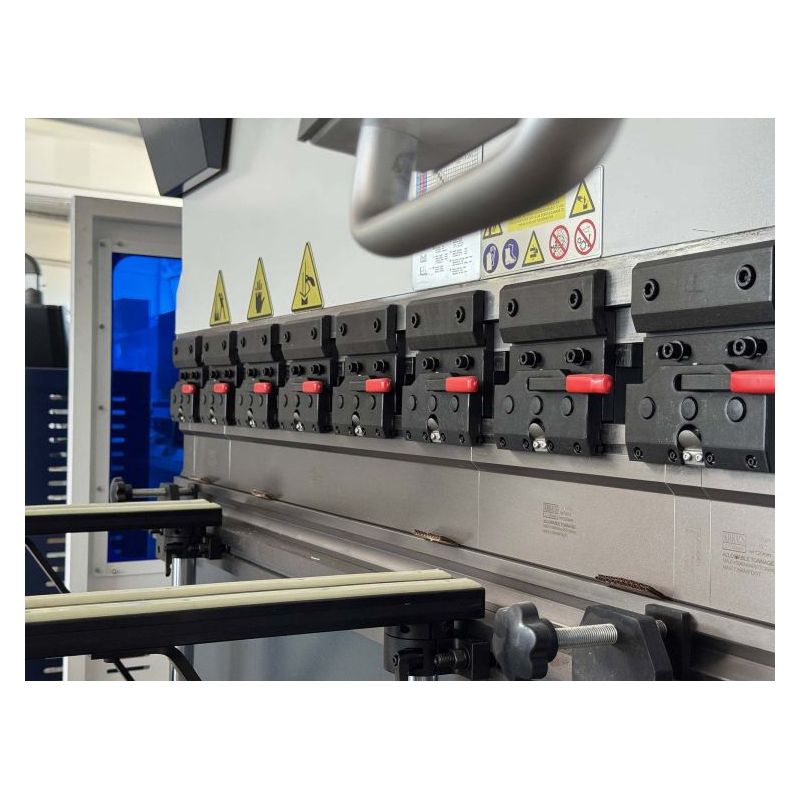

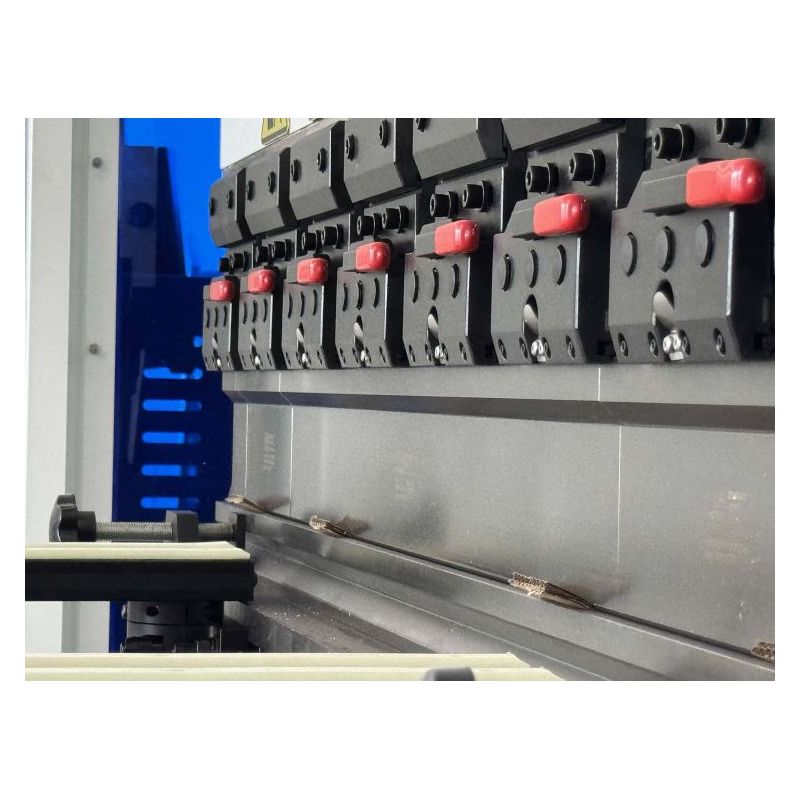

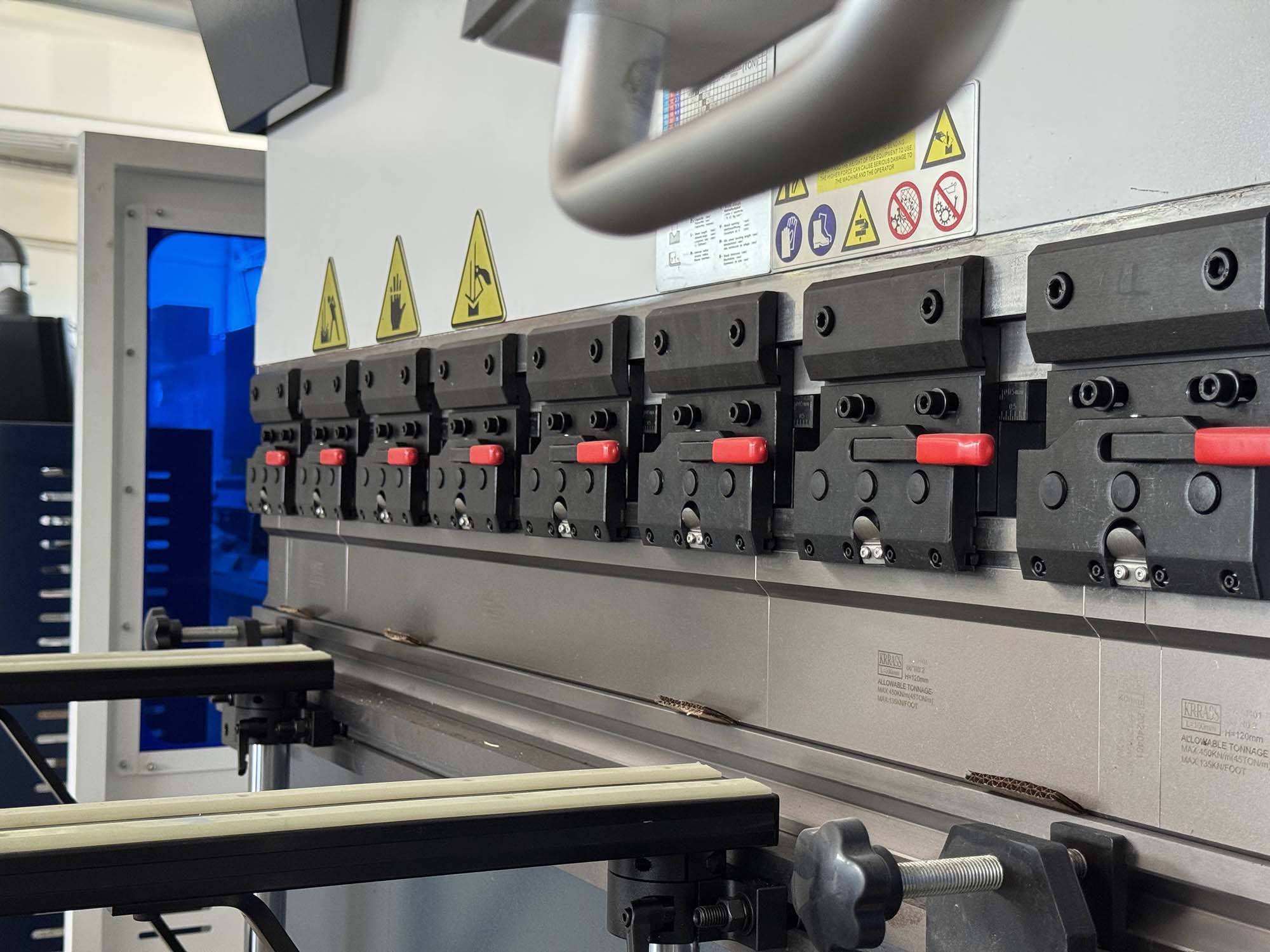

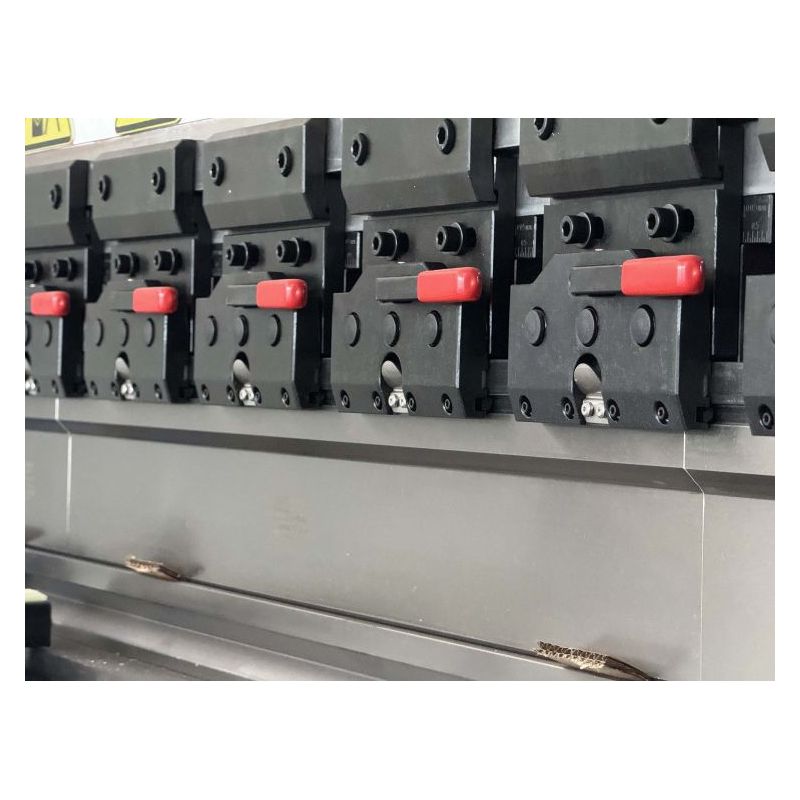

- brzo otpuštanje gornjeg alata (mehaničko)
- CE
- upute na engleskom jeziku
