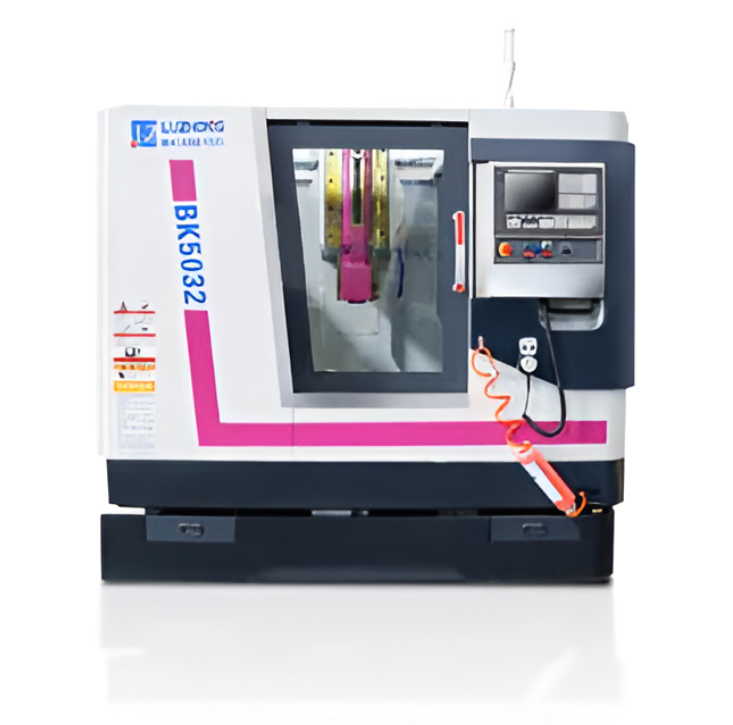

SLOTTING MACHINE CNC BK5032

SKU: BK5032

Price on inquiry

Available on inquiry

ATTENTION:
This product is currently out of stock, but we can order it for you.
Click on Send us a massage and we will inform you of the price and the exact delivery time.

Available on inquiry

Notify me

Send us a message

Cart

Dubilica za izradu utora CNC BK5032

Precizna CNC dubilica s naprednim upravljanjem, idealna za obradu utora i složenih oblika u alatničarstvu i proizvodnji.

Tehničke specifikacije

Upravljačka jedinica: KND1000N
Maksimalni hod: 320 mm
Broj koraka u minuti: 20–80
Podešavanje hoda: 315 mm
Razmak od nosača stroja do alata: 600 mm
Razmak u spuštenom stanju glave do stola: 490 mm
Dimenzije stola: 600x320 mm
Hodovi radnog stola (X/Y): 620x560 mm
Moment na X i Y osi: 7.7 Nm
Brzi hod po X i Y osi: 5 m/min
Snaga glavnog motora: 4 kW
Težina stroja: 3700 kg
Dimenzije stroja (DxŠxV): 2800x2400x2500 mm
