Hidraulične škare Baykal HNC serija

Hidraulične škare Baykal HNC serija

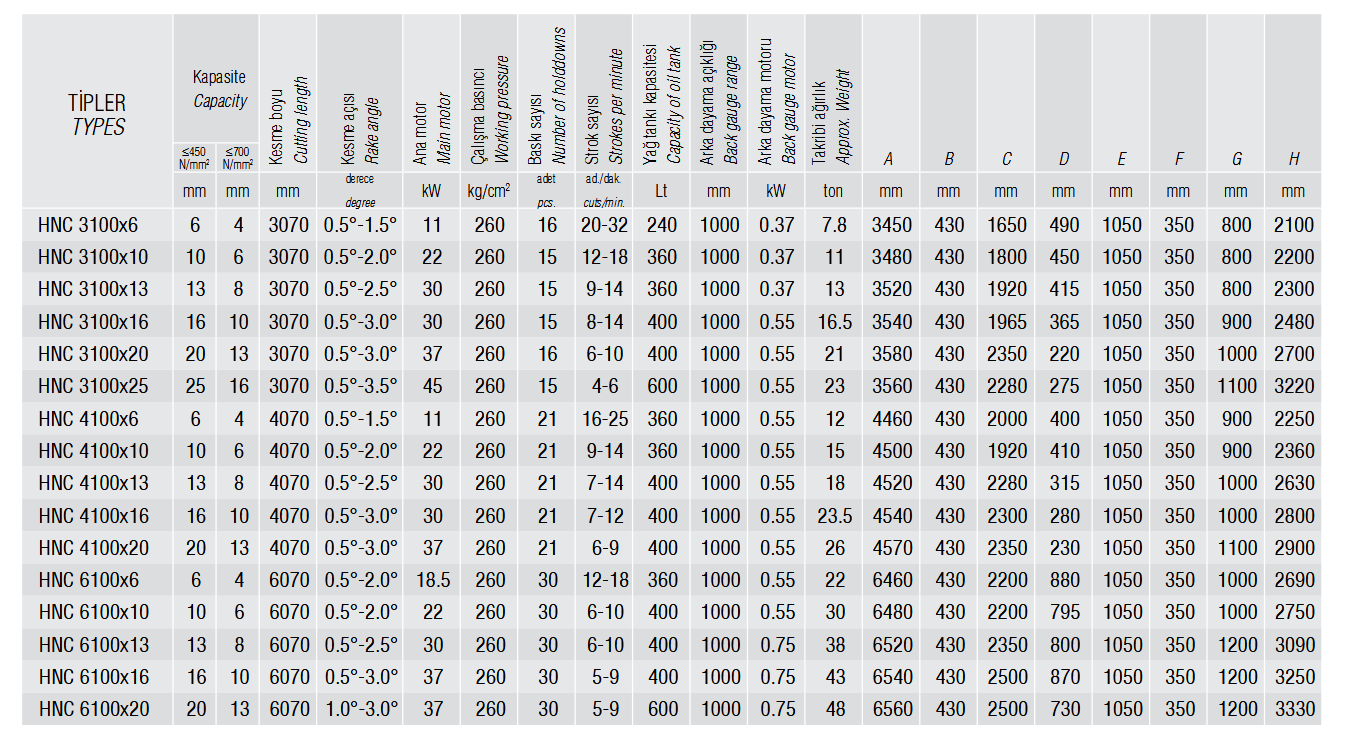

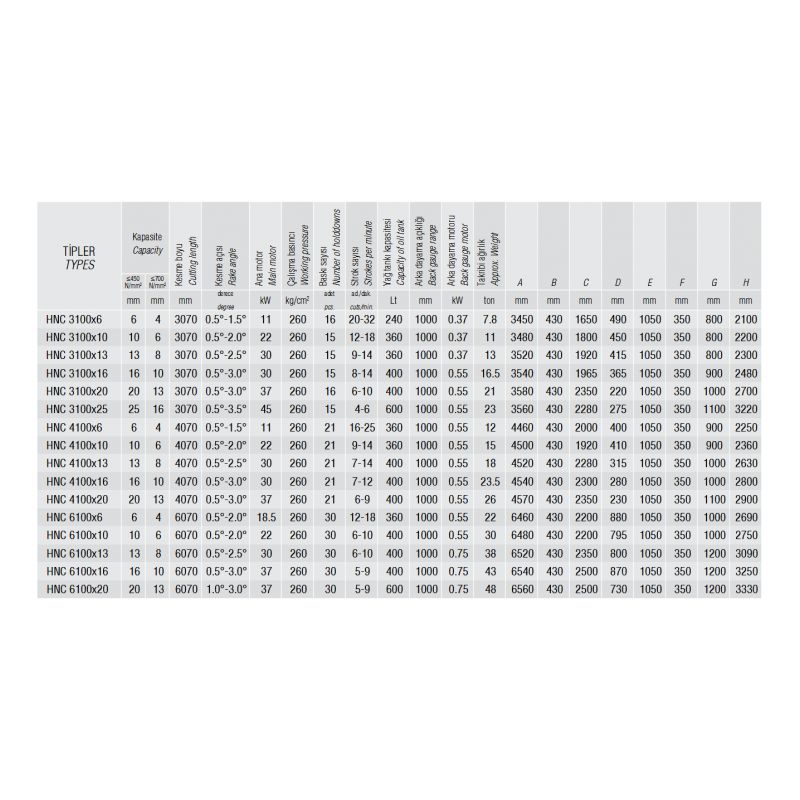

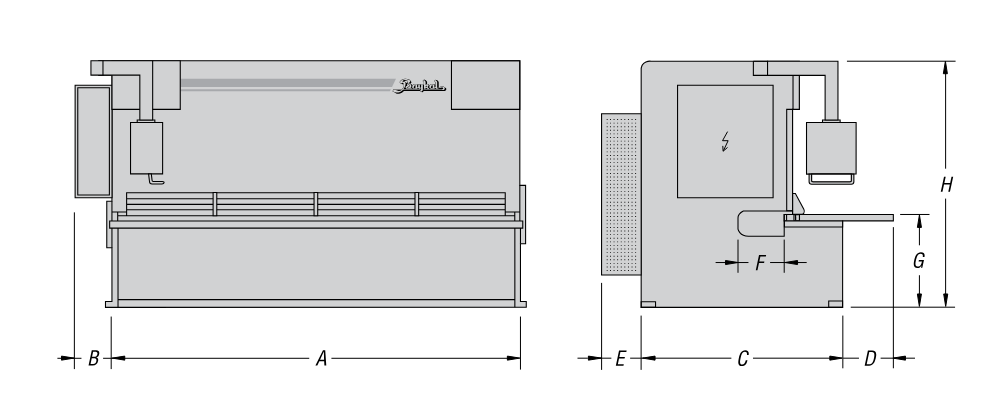

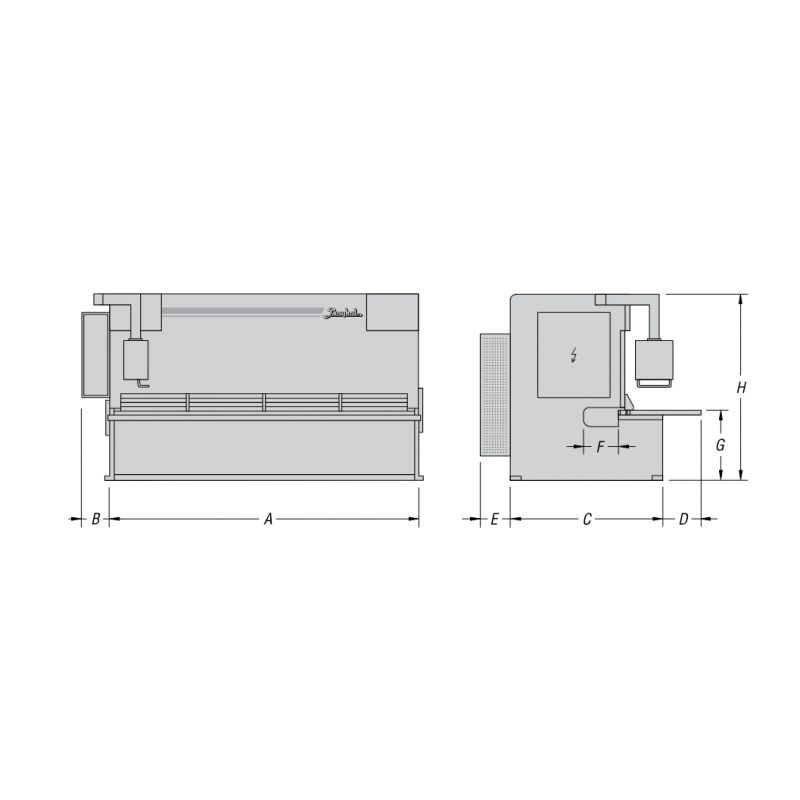

DESIGN AND OPERATING FEATURES
• Rigidly welded all-steel frame construction
• Design with “variable-rake” concept
• Adjustment of machine functions with easy-to-
use digital control units
• Extra deep (350 mm) side frame throat gaps
allowing continuous strip slitting
• Swing-up backgauge system for shearing longer
pieces than backgauge range
• Backgauge system with ballscrews
• Backgauge retract function
• Adjustable stroke length to increase number of
strokes on shorter cuts
• Compact, low-maintenance European hydraulics
• Hydraulic holddown system
• Hydraulic overload protection
• Centralised manual lubrication system

STANDARD EQUIPMENT
• Shear blades from tough and wear-resistant
alloyed material:
Top blade : Two cutting edges
Bottom blade : Four cutting edges
• Digital control unit for backgauge positioning,
rake adjustment, and blade gap setting
• Foot pedal control for single and repetitive
cutting cycles
• 1000 mm power backgauge with ballscrew
spindles to 0.1 mm precision
• 1000 mm squaring arm with scale, T-slot and
flip-stop
• Front support arms in 1000 mm length
• Digital stroke counter
• Pendant arm
• Work table with filler plates, ball transfers and
hand slots
• Emergency stop buttons on the pendant and on
the mainframe
• Shadow line facility with fluorescent lighting
• “See through” finger guard and side throat
guards

OPTIONAL EQUIPMENT
• Multi-function electronic control units
- Siemens OP7 S7-200
- Cybelec DNC 60
• Servo driven backgauge movement
• Automatic “swing-up” backgauge mechanism
for shearing longer pieces than maximum
backgauge length
• Pneumatic rear support systems for thin sheets
• Anti-twist system
• Front and rear sheet conveyor and stacking
systems
• Oil cooling or heating equipment
• Throat gap deeper than standard
• Squaring arm and front arm length other than
standard
• T-slotted front support arms with scale and
flip-stop
• Angle gauge
• 1000 mm lift-up front finger guard with
electrically interlocked safety switch
• Holddown pads
• Rear safety guarding
• Conformity to European Community CE norms
