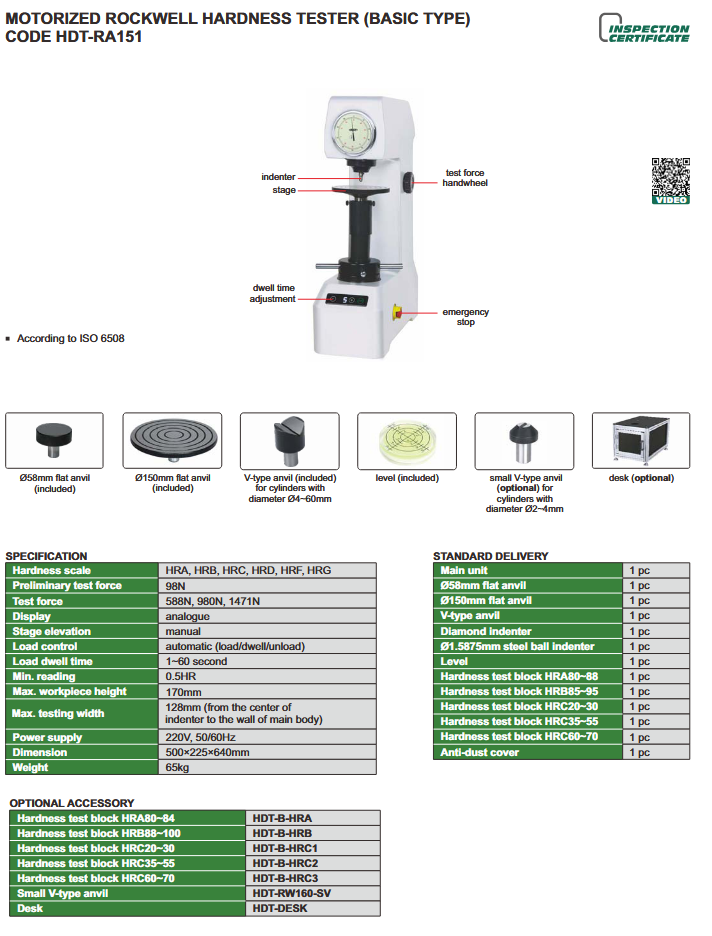

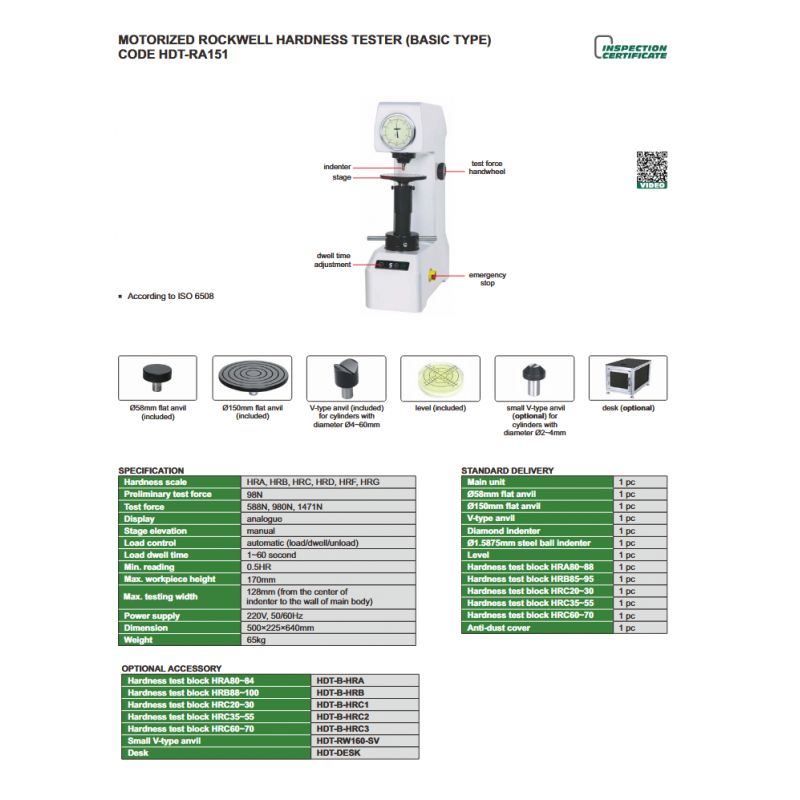

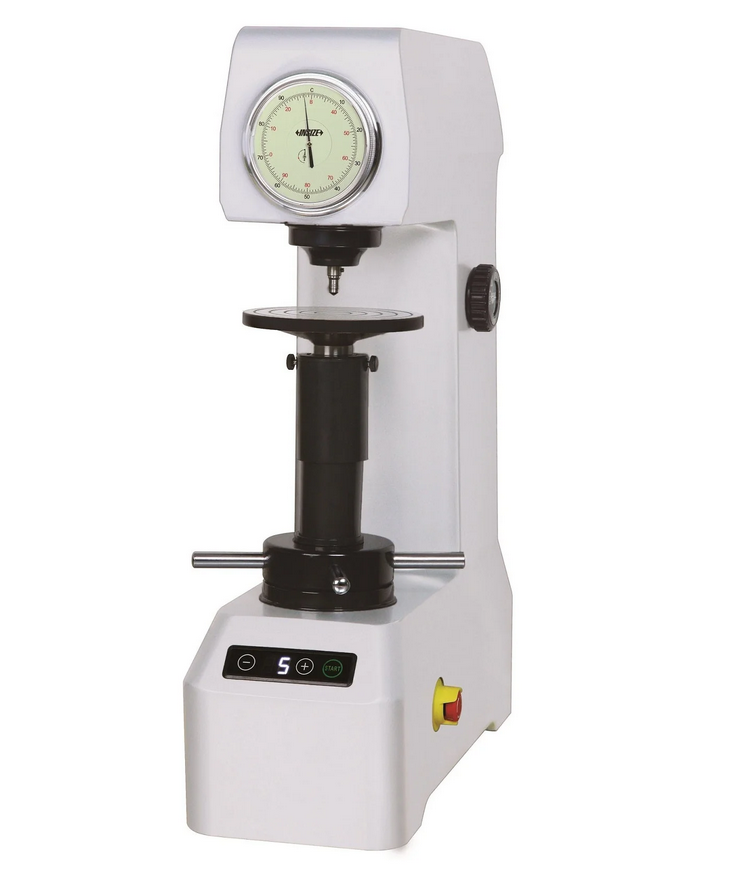

Uređaj za ispitivanje tvrdoće - automatski, HDT-RA151, Insize

Uređaj za ispitivanje tvrdoće - automatski, HDT-RA151, Insize

• Hardness scale: HRA, HRB, HRC, HRD, HRF, HRG
• Prelimibary test force: 98 N
• Test force: 588 N, 980 N, 1471 N
• Display: analogue
• Stage elevation: manual
• Load control: automatic (load/dwell/unload)
• Load dwell time: 1~60 second
• Min.reading: 0,5 HR
• Max.workpiece height: 170 mm
• Max.testing width: 128 mm( from the center of indenter to the wall of main body)
• Power supply: 220V, 50/60 Hz
• Dimension: 520x225x640 mm
• Weight: 65 kg

Standard delivery:

• main unit: 1pc
• Φ58mm flat anvil: 1pc
• Φ150mm flat anvil: 1pc
• V-type anvil: 1pc
• Diamond indenter: 1pc
• Φ1.5875mm steel ball indenter: 1pc
• Level: 1pc
• Handness test block HRA80-88: 1pc
• Handness test block HRB85-95: 1pc
• Handness test block HRC20-30: 1pc
• Handness test block HRC35-55: 1pc
• Handness test block HRC60-70: 1pc
• Anti-dust cover: 1pc
