CNC fiber laseri Navicut
CNC fiber laseri Navicut
High-Speed Metal Cutting Complexes with Fiber Laser and Linear Motors
Navicut produces complexes for high-speed metal cutting with a fiber laser and linear motors.
The Navicut machines are leaders in such parameters as productivity, price/quality ratio, processing cost of parts to be cut.
We supply machines to the European Union and the USA, where we successfully compete with the best models.
Laser cutting machines
- IPG or Raycus laser sources with chiller
- Precitec or Raytools cutting head
- Linear motors or pinion rack
- Filter ventilation unit
- Powerful compressor optional
- Production and service in Serbia
- 3 years warranty

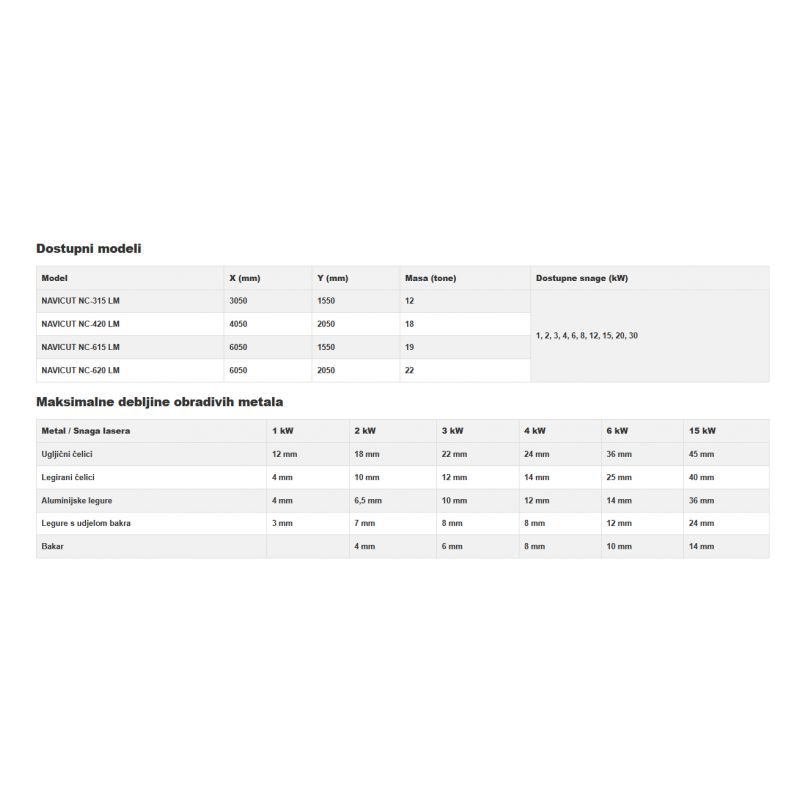

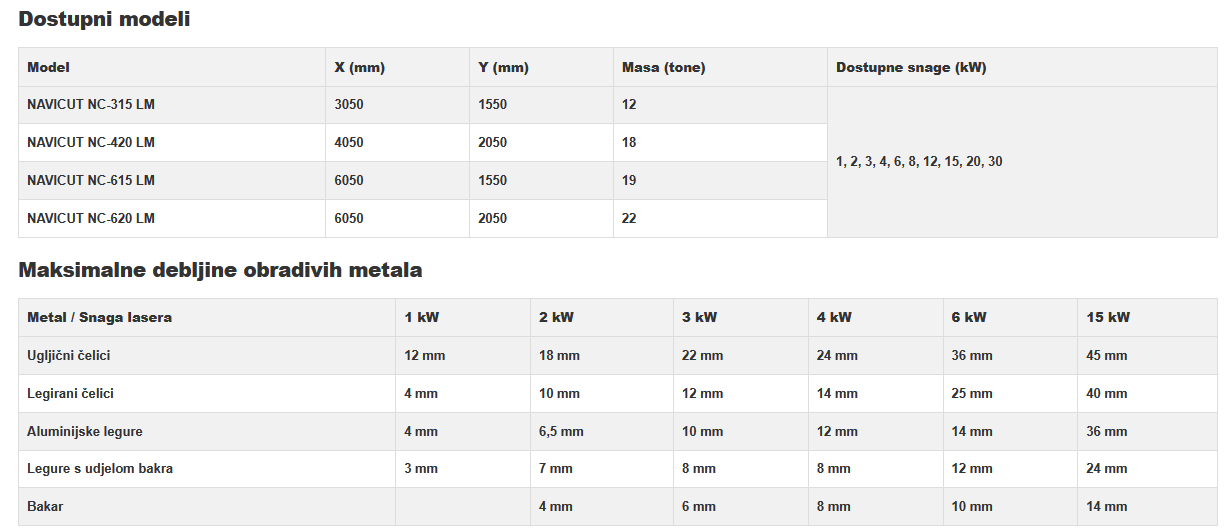

Model Range
| Model | X (mm) | Y (mm) | Weight (tons) | Available power (kW) |
|---|---|---|---|---|
| NAVICUT NC-315 LM | 3050 | 1550 | 12 | 1, 2, 3, 4, 6, 8, 12, 15, 20, 30 |
| NAVICUT NC-420 LM | 4050 | 2050 | 18 | |
| NAVICUT NC-615 LM | 6050 | 1550 | 19 | |
| NAVICUT NC-620 LM | 6050 | 2050 | 22 |
Maximum Thicknesses of Processed Metals
| Metal Output power | 1 kW | 2 kW | 3 kW | 4 kW | 6 kW | 15 kW |
|---|---|---|---|---|---|---|
| Carbon Steels | 12 mm | 18 mm | 22 mm | 24 mm | 36 mm | 45 mm |
| Alloy Steels | 4 mm | 10 mm | 12 mm | 14 mm | 25 mm | 40 mm |
| Aluminum alloys | 4 mm | 6.5 mm | 10 mm | 12 mm | 14 mm | 36 mm |
| Copper-containing alloys | 3 mm | 7 mm | 8 mm | 8 mm | 12 mm | 24 mm |
| Copper | 4 mm | 6 mm | 8 mm | 10 mm | 14 mm |
